V02.00 | 2019/10
25

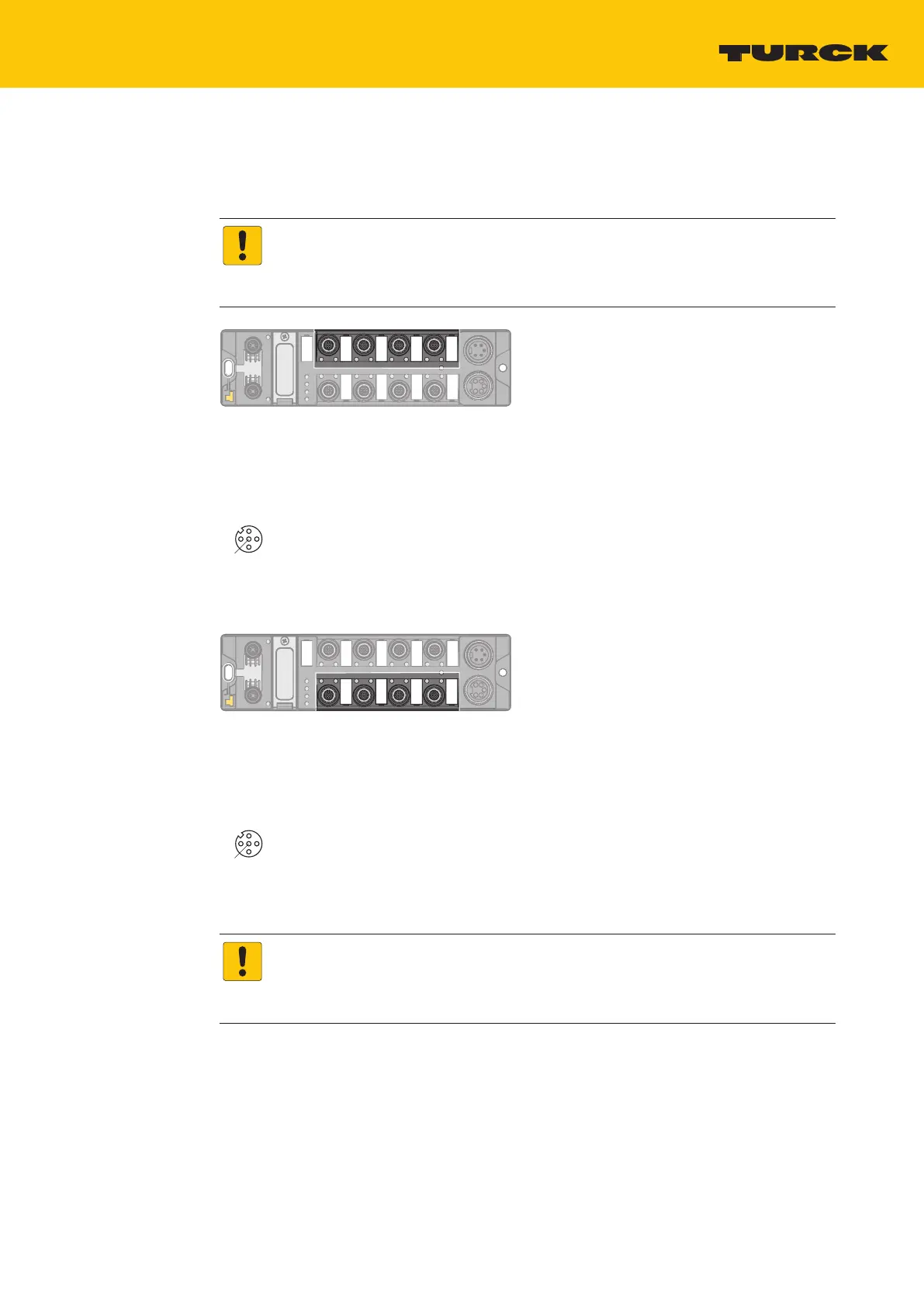

7.3 Connecting IO-Link devices and digital sensors
The device has eight M12 female connectors for connecting IO-Link devices and digital sensors
and actuators. The maximum tightening torque is 0.8 Nm.
NOTICE
Wrong supply of IO-Link devices
Damage to the device electronics
Only supply IO-Link devices with the voltage provided at the M12 connectors.
Fig.20: M12 connectors, IO-Link master ports, Class A
Connect the sensors and actuators to the device according to the pin assignment.
Fig.21: Pin assignment of IO-Link master ports, Class A, C0…C3
Fig.22: M12 connectors, IO-Link master ports, Class B
Connect the sensors and actuators to the device according to the pin assignment.
Fig.23: Pin assignment of IO-Link master ports, Class B, C4…C7
NOTICE
Connection of Class A devices to Class B ports
Loss of the galvanic isolation with Class A devices at pin 2 and 5
Only use Class A devices with signals on pin 1, pin 3 and pin 4 at Class B ports.
