Tuttnauer 3545 - 4. INSTALLATION, PLACING AND LEVELING INSTRUCTIONS; 4.1 leveling

Page 10 of 63 Pages

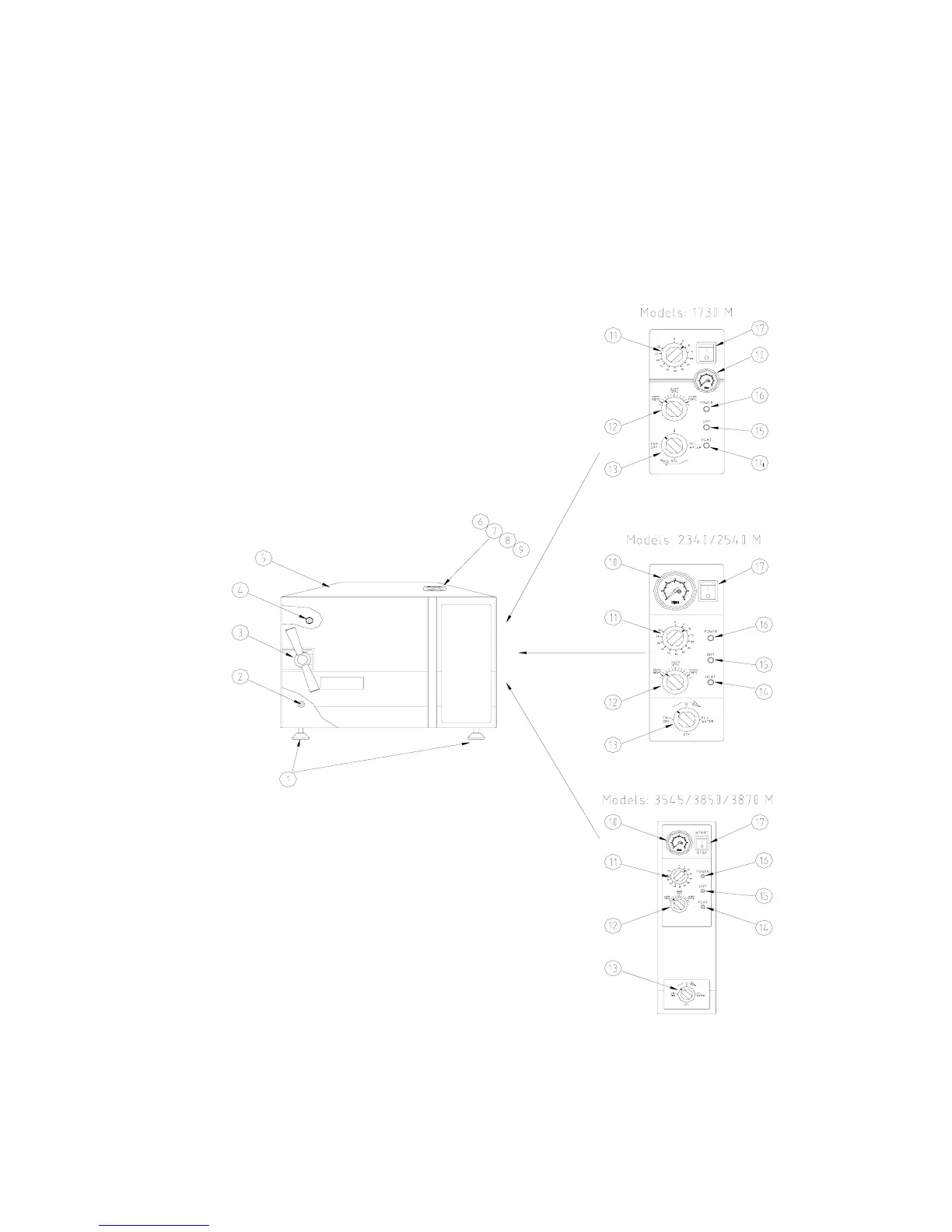

FRONT VIEW
1. Front legs
2. Reservoir water drain valve.
3. Door tightening bolt
4. Door Micro-switch
5. Autoclave cover
6. Water reservoir cover
7. Water reservoir
8. Safety valve
9. Air trap jet
10. Pressure gauge
11. Timer
12. Pressure switch (B10) knob
13. Multipurpose valve
14. Heat indicator light
15. Dry indicator light
16. Power indicator light
17. Main power switch
