4. INSTALLATION, PLACING AND LEVELING INSTRUCTIONS
Network
Network and connection should comply with the devices
consumption. It must comply with local installation and safety rules
and regulations. The voltage supplied to the device must comply
with the label ± 5%.
Caution:
The sterilizer must be placed on a rigid and leveled surface. The
stand must be able to hold the load of the device and loaded
material.
Note:
Make sure while placing the autoclave, to leave space around the
machine, to give the technician access to service the machine.
In order to avoid any injury by electrical hazard, it is mandatory for the
customer to have installed an earth leakage relay in the electrical board to
which the autoclave is connected.
This relay disconnects all the poles of the electrical power line in case of
accidental contact with the instrument metal enclosure, by the operator or
another person, leading to a dangerous leakage current.
Note: Keep the back and the right side of the autoclave approximately 1”
(25mm) away from the wall to allow for ventilation.
Connect the power cord to the socket on the rear side of the autoclave; plug it
into the supply socket.

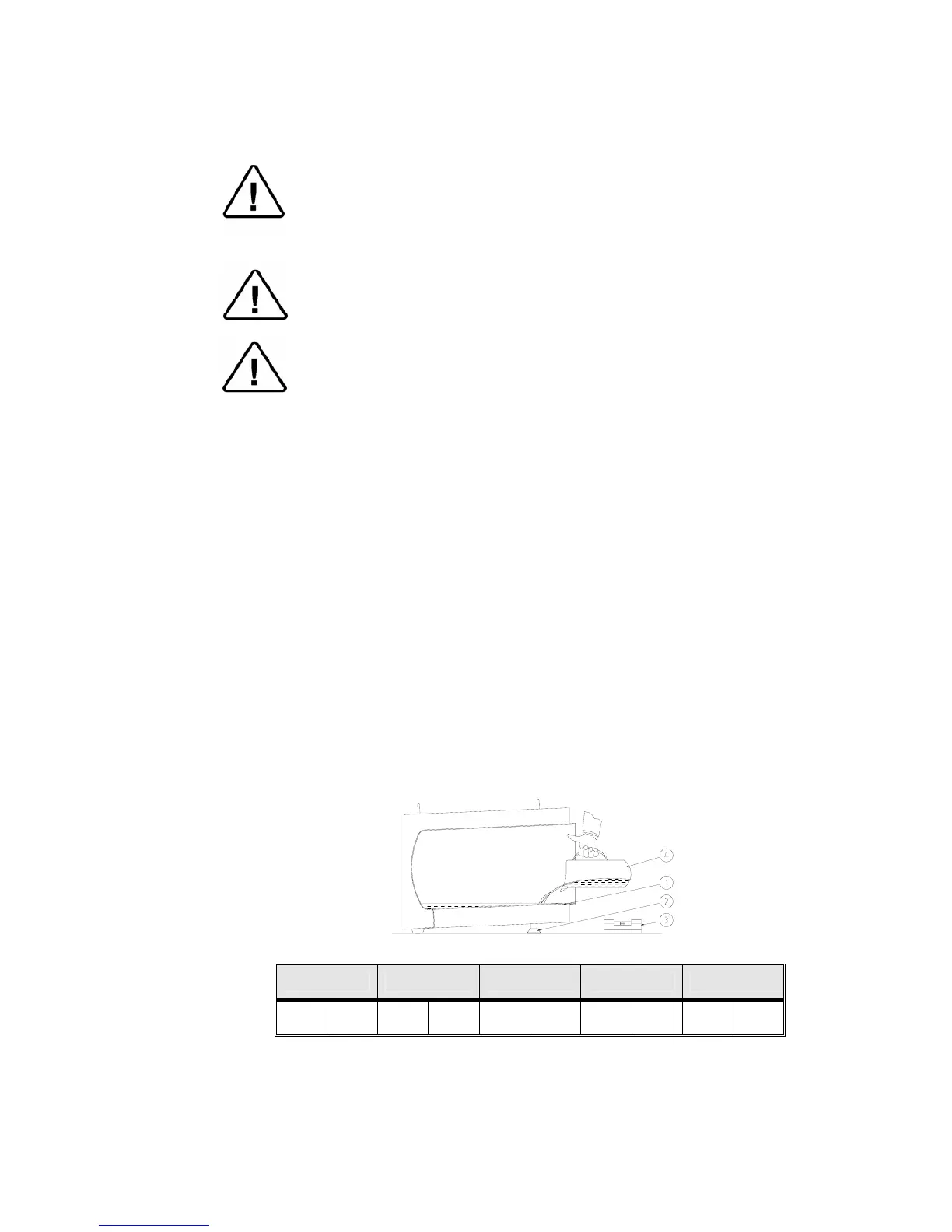

4.1 leveling
The legs (2) of the autoclave are factory set for the autoclave to hold
this amount of water when the autoclave stands on a level surface (3).
To check the water level fill a beaker (4) with the recommended
quantity of water, pour the water into the chamber. The water must
reach the indicator groove (1) in front of the chamber.
1730 2340/2540 3545 3850 3870
300 ml
