Tuttnauer 3545 - 2.11 Electrical Data

Page 7 of 63 Pages

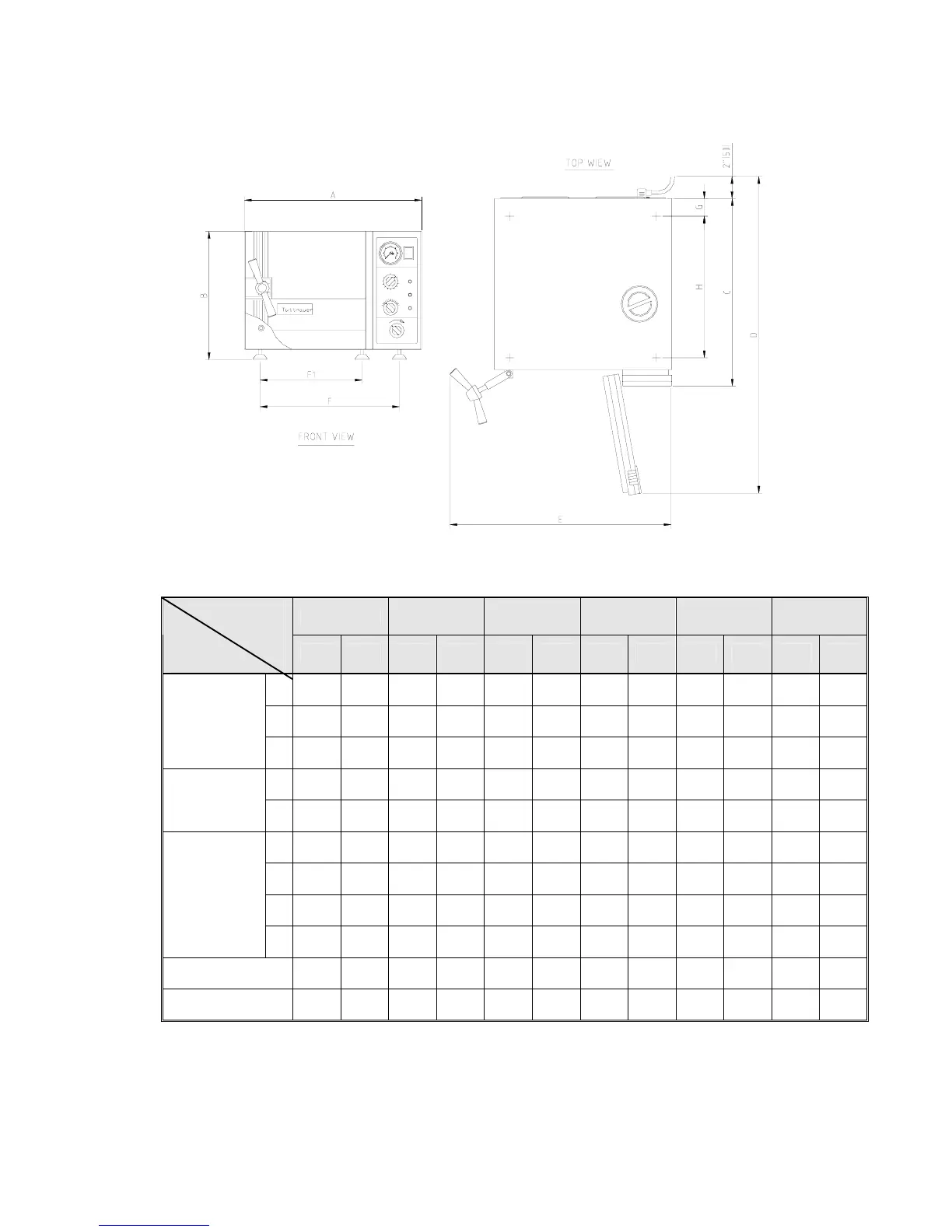

2.9 Dimensions
1730 2340 2540 3545 3850 3870
Model
Dimensions
Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
A 17.4 440 20.0 510 20.0 510 23.2 590 26.0 660 26.0 660
B 12.0 305 14.4 365 14.4 365 17.7 450 20.7 525 20.7 525
Overall
Dimensions
C 17.9 455 21.5 545 21.5 545 21.9 556 27.5 695 34.5 875
D 29.5 750 35.8 910 35.8 910 39.0 990 45.5 1155 53.0 1335
Maximum
dimensions
(door open)
E 22.0 560 25.8 655 25.8 655 29.7 755 32.0 815 32.0 815
F1 9.2 234 11.8 299 11.8 299 19.2 488 17.7 450 17.7 450
F 13.4 339 16.6 422 16.6 422 14.6 371 22.2 564 22.2 564
G 2.0 50 2.0 50 2.0 50 2.0 50 2.0 50 2.0 50
Distance
between
supporting
legs
F1-front legs
F -rear legs
H 12.4 315 15.8 400 15.8 400 15.2 386 21.8 555 30.5 725
Diameter 6.7 170 9.1 230 10 254 12.3 312 15.1 384 15.1 384
Depth 13.4 340 18.5 470 18.7 475 15.4 391 22.8 580 29.9 760
