Page 47 of 63 Pages

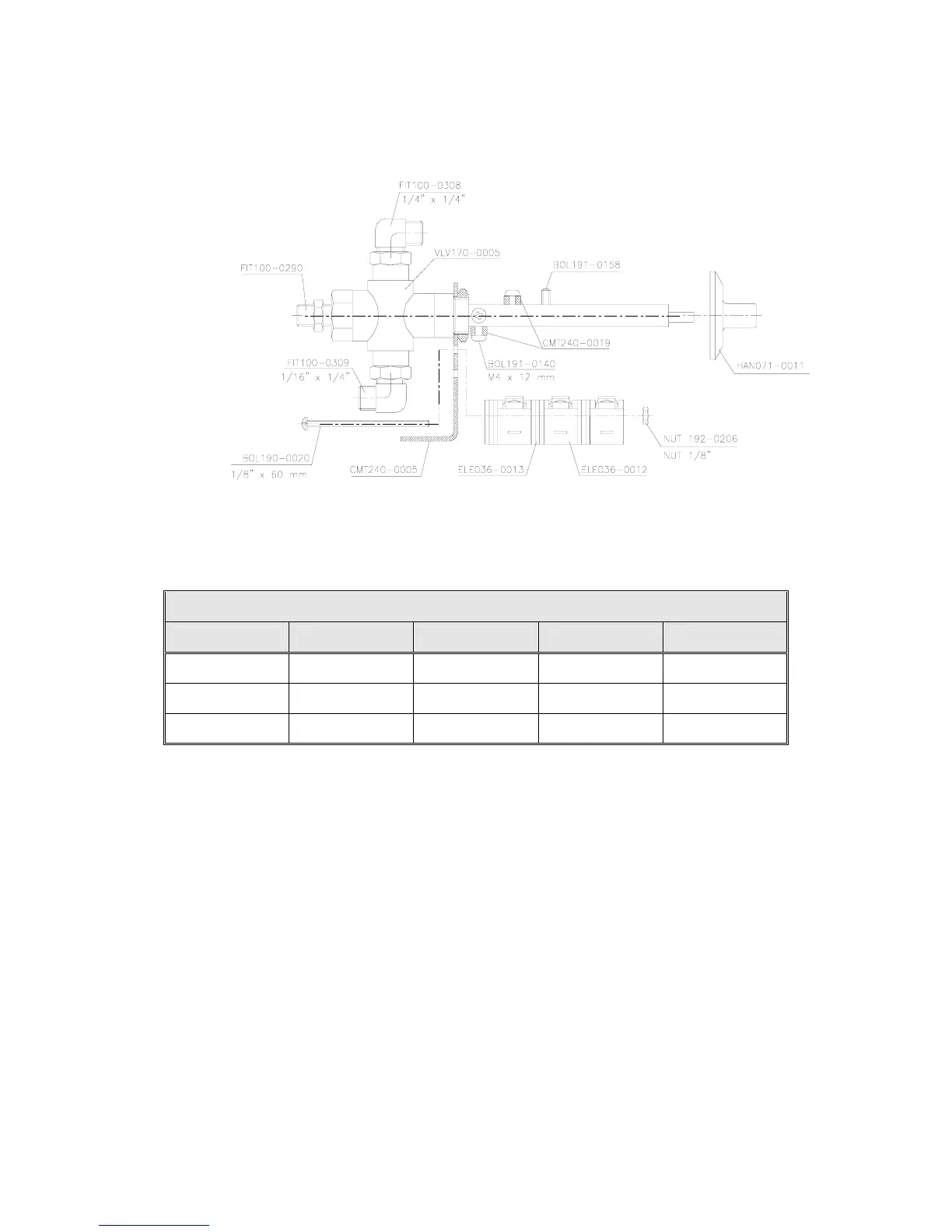

MULTI-PURPOSE VALVE ASSEMBLY CMT240-0027
Position of Micro-Switches and their Operation Situation
M.Sw Stage -0- Fill Ste. Exh. + Dry
M.Sw.1 Tight Tight Loose Loose
M.Sw.2 Loose Loose Loose Tight
M.Sw.3 Loose Loose Loose Tight
Notes:
1. Microswitches MSw1 - STER. and MSw. 2- DRY are actuated by the multi-
purpose valve.
2. Microswitch MSw3 - Door Sw. is actuated by the door and is in pos. ON when
the door is closed.
