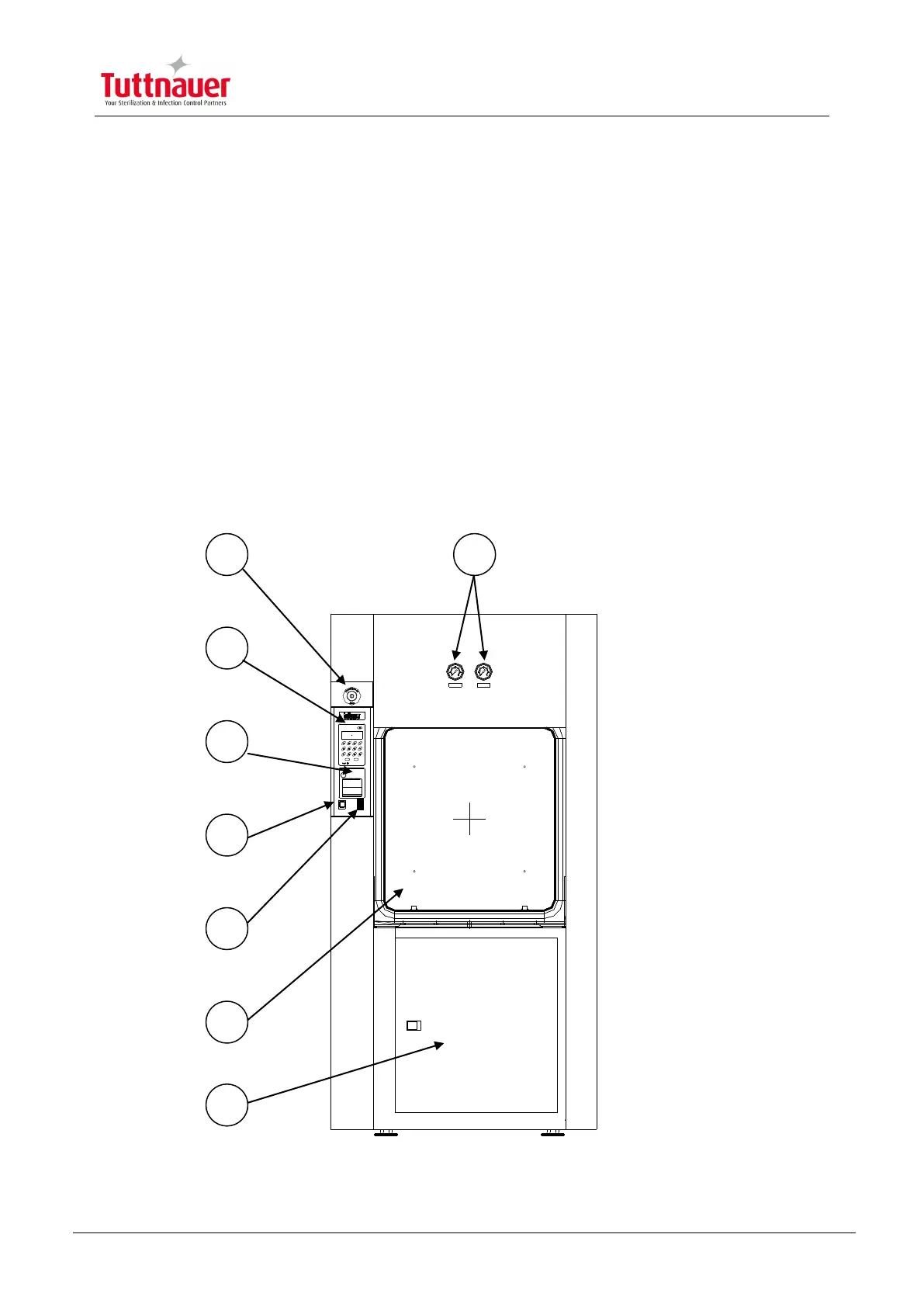

1.2 Front Panel
Legend:
1. Pressure Gauges
2. Emergency STOP Switch
3. Operation Panel
4. Printer
5. Operating Switch
6. Steam Selector Switch
7. Chamber
8. Service Access Panel
7
5
2
3
1
4
6
8
