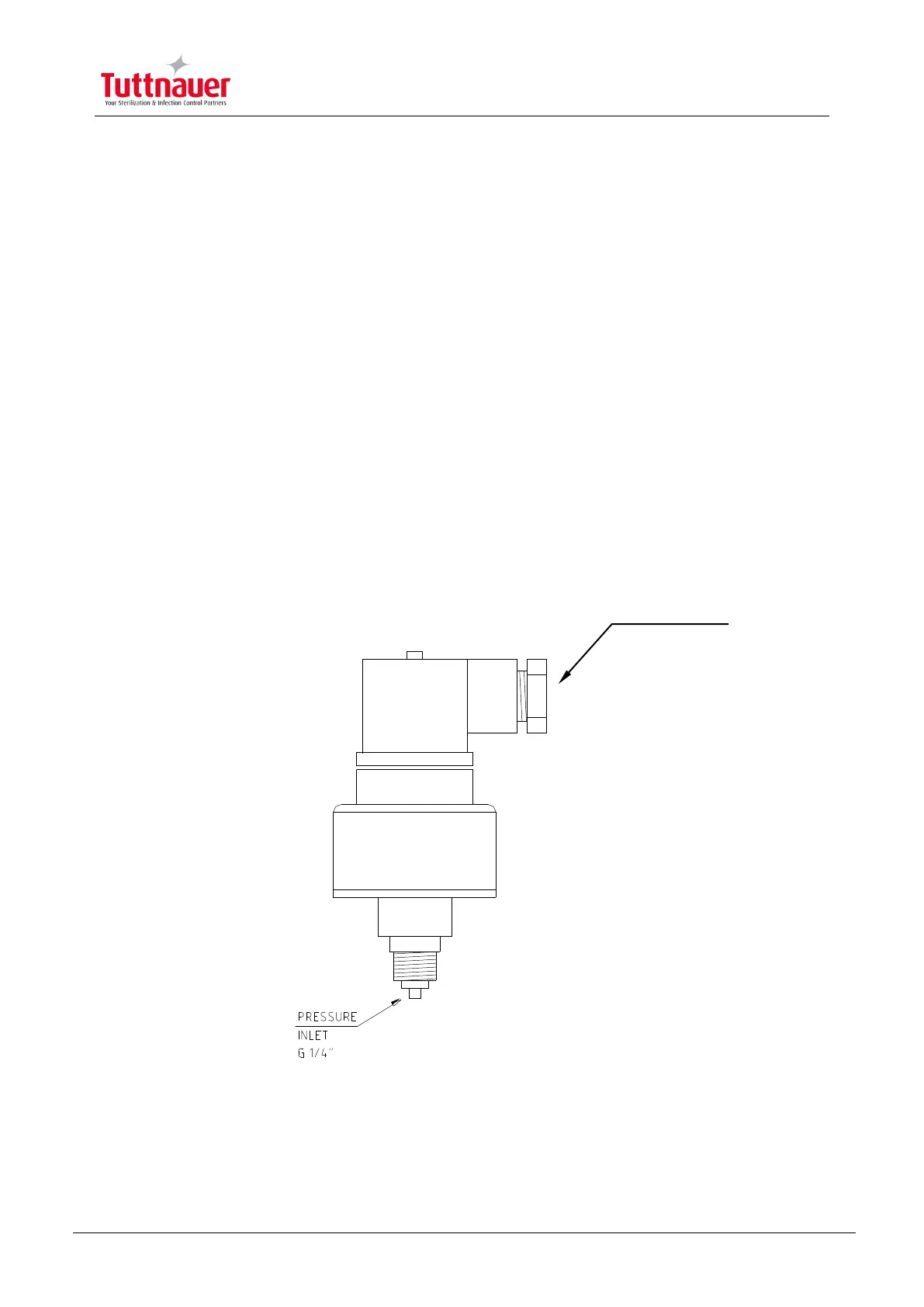

3.4 Absolute Pressure Transducers
The transducer type MT 3296 is a membrane pressure sensor and electronic measuring
circuit, with the following specifications:
Pressure range: 0-4bar (0–58 psia).
Output span current: 4-20mA
Supply voltage: 10V to 30V
The autoclave is fitted with four pressure transducers for controlling & monitoring:
1. Chamber pressure – (control, display, and printout)
2. Jacket pressure – (control and monitoring)
3. Door 1 gasket pressure – (control and monitoring)
4. Door 2 gasket pressure – (control and monitoring)
The terminals at the connector of the device are 1 (+24V) and 2 (OUT) to the controller
output.
