4.1.2 Display
Note:
Temperature and pressure measuring units differ according to the country of
operation. Temperature and pressure are displayed in both ºC or ºF and kPa or
psi, respectively.

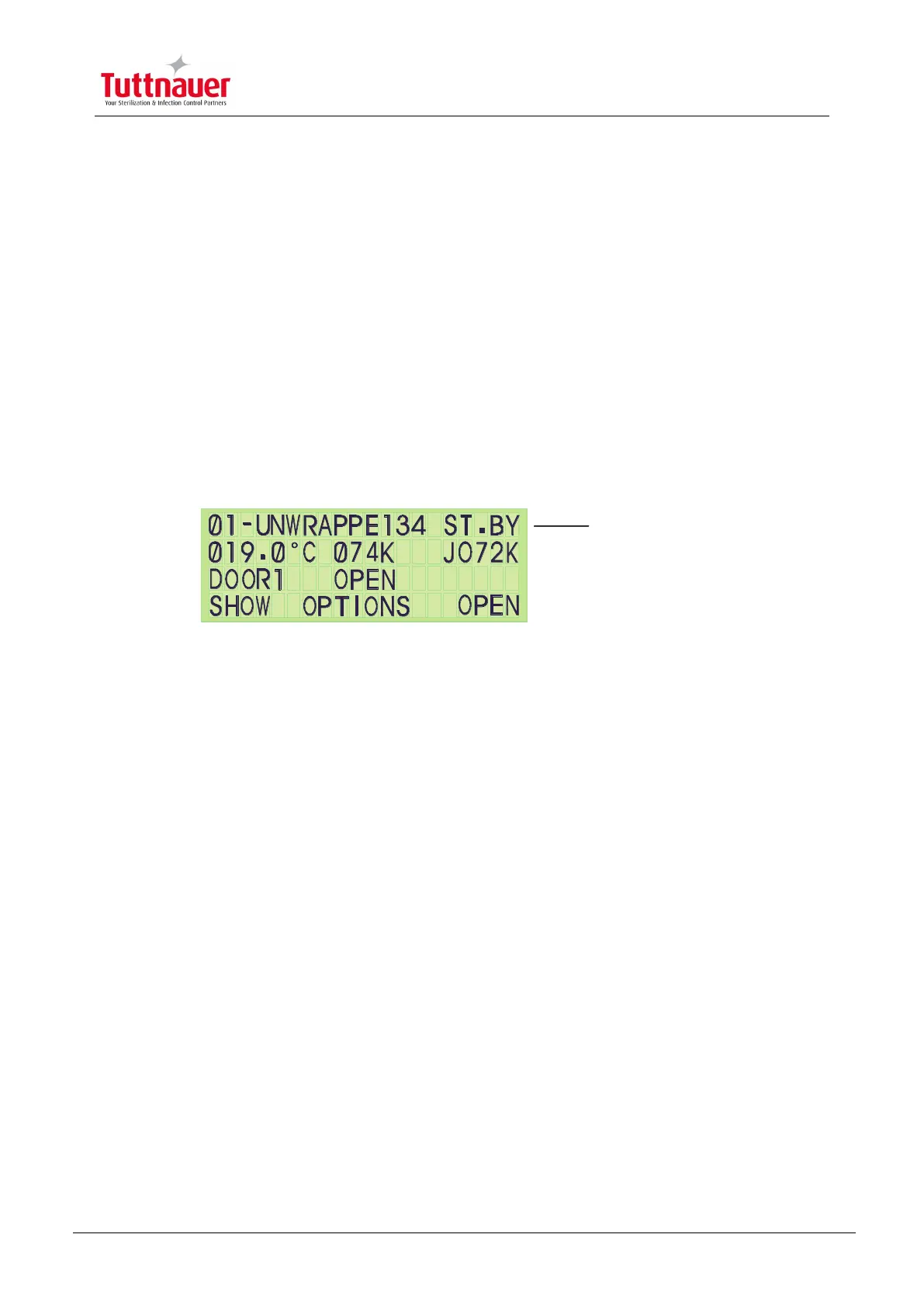

The CAT2007 display consists of 4 alphanumeric rows with 20 characters in each row
(see Figure below)
First Row
First 3 characters define the Cycle no. (ranges from 1–12)
8 characters define the cycle name.
The 5 final characters at the right end of the row are allocated for displaying the status of
the autoclave or the stage of the cycle in operation.
1. ST. BY - indicates that the autoclave is in the waiting stage.
2. READY - indicates that the machine is ready for operation.
3. END - indicates that the process has ended correctly.
4. FAIL - indicates that the program has ended due to failure.
The names of the stages are:
Vacuum
Exh. (Exhaust)
Heat
Dry
Ster. (sterilizing)
Test
