MAN205-0195042EN Rev. A Aug. 2011
Page 39 of 137 pages

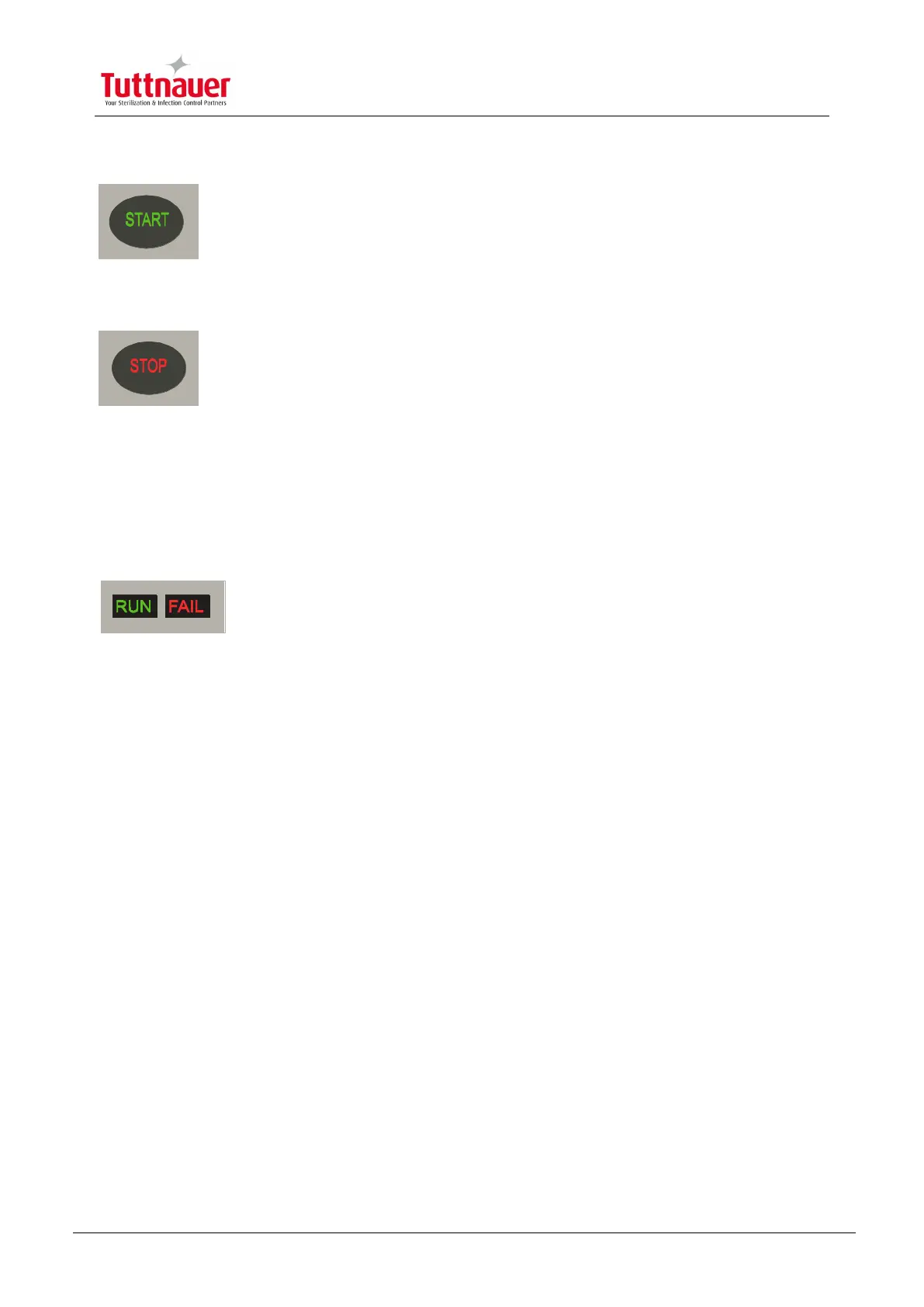

START Key
When the autoclave is in the Ready position, pressing START activates
the cycle.
STOP Key
This key is active while the autoclave is in operation. Pressing STOP at
any stage of the cycle stops the operation.
Canceling the FAIL message
At the end of an aborted process the FAIL light is turned ON and an error message is
displayed on the screen indicating the cause of the failure.
Press the STOP key to cancel the displayed message and switch off the FAIL light.
RUN/FAIL LEDs
The operation panel contains 2 small LEDs which are located on the
top left corner. The RUN LED (green) lights when the autoclave is in
process. When the system has been turned OFF by the ST.BY key,
the RUN LED will flash for 1/2 a second for every 2 seconds indicating that the system is
still ON. The FAIL LED (red) lights when there is a problem with the system.
