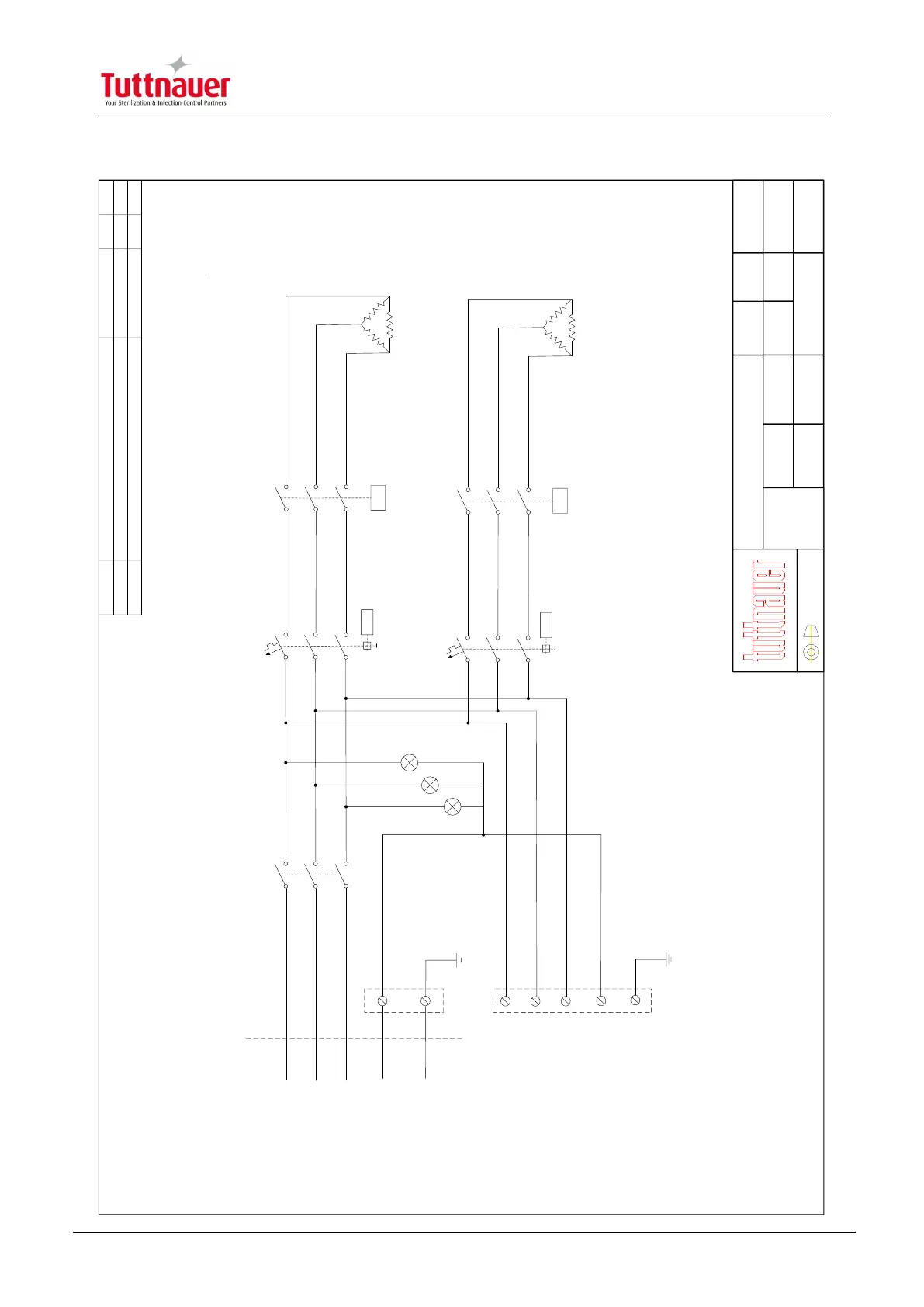

GENERATOR POWER ELECTRICAL DIAGRAM
TC1<
T/L3
S/L2
R/L1
Heaters 1
L3
L2
L1
T3
T2
T1
Q0
L3
L2
L1
T3
T2
T1
C1
KM1
L3
L2
L1
T3
T2
T1
CB1
TB1
N
To
Control
Panel
L1
L2
L3
PE/GND
PE/GND
TB2
Description:
Design:
Rev No.
Drawing:
Prepared by:
Job No.
Approved by:
Scale:
Quant./Job:
Drawing No.
Cat. No.
Q. C.
Quant./Unit:
01
ISO
A3
Preparation By:
Description Date Rev. No ECO
Generator power electrical diagram for
2 sets of heaters with neutral
Page:
From:
2 4
Marchel N.
Yuval S.
See page 1
ES1G08-0001-N
Heaters 2
L3
L2
L1
T3
T2
T1
C2
KM2
L3
L2
L1
T3
T2
T1
CB2
TC2<
Legend:
1. HEATERS = 208V /6000W
2. KM1 & 2 = CONTATOR: DILM65
33. CB1 & 2 = CIRCUIT BREAKER:FAZ-3 C63
44. QS1 = PANEL SWITCH: 3 PH 125A
