KNOW YOUR TVS XL 100
KNOW YOUR TVS XL 100
Warning
Avoid spilling of fuel on the hot engine. Never refill
fuel near open flame. Do not smoke while
refueling. Do not use cell phones while refueling.
Whenever refueling the vehicle, fill upto the
bottom of the neck portion of the fuel tank. Filling
above the neck may result in improper breathing of
fuel tank and seepage of fuel.
Note

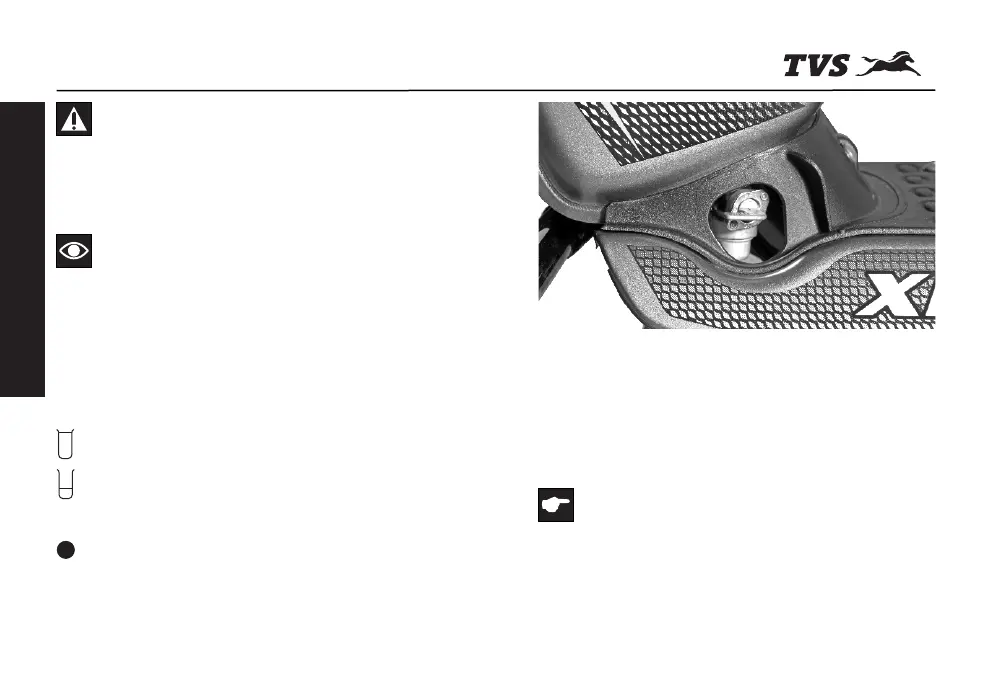

FUEL COCK
Fuel cock has the following three positions:
ON: Fuel flows in this position when the fuel is
above the reserve level in the tank.
RES: Switch over the fuel cock lever to this
position when the fuel stops flowing in
‘ON’ position.
OFF: Fuel flow cuts off from the tank to
carburettor.
ON
OFF
RES
While riding the vehicle with fuel cock lever in ‘ON’
position and if the fuel in the tank reaches reserve
level, you may experience engine sluggishness
and jerky feeling. Take the vehicle to the left side of
the road while taking care of traffic and change the
fuel cock lever position to ‘RES’.
Leaving the fuel cock in ‘ON’ or ‘RESERVE’
position may cause the fuel tank to completely
drain out, incase any malfunctioning of carburettor
float system.
Caution

TVS XL Series Specifications

General

Displacement	99.7 cc
Maximum Torque	6.5 Nm @ 3500 rpm
Fuel System	Carburetor
Front Brake	Drum
Rear Brake	Drum
Starting Method	Kick Start
Engine Type	Single Cylinder, 4-Stroke
Front Suspension	Telescopic
Rear Suspension	Swing Arm with Hydraulic Shock Absorber
Fuel Tank Capacity	4 liters
Kerb Weight	80 kg
Wheel Type	Spoke
Tyre Type	Tube
Front Tyre Size	2.50 - 16
Rear Tyre Size	2.50 - 16
Seat Height	770 mm
Ground Clearance	150 mm
Transmission	Single Speed Gearless
