TVS XL Series User Manual

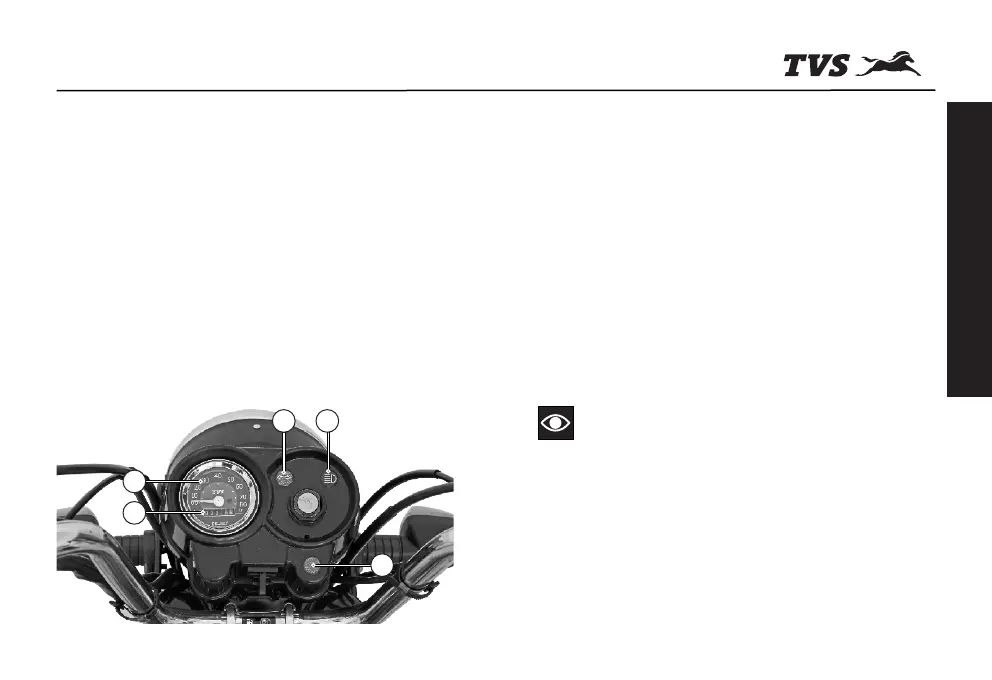

SPEEDOMETER ASSEMBLY
1. Odometer
Registers and displays the total distance covered
by the vehicle in kilometers. The last digit denotes
one tenth of a kilometer.
2. Speedometer
Indicates vehicle speed in kilometers per hour.
3. Turn signal indicator lamp
Flashes when the ‘left’ or ‘right’ side turn signal
lamp is activated.
-5-
4. High beam indicator lamp
Glows when the head lamp high beam is activated.
5. Electrical system indicator lamp**
Electrical system indicator lamp (ESIL) blinks while
starting the vehicle using electric starter and goes
OFF once the engine gets started.
If this indicator glows continuously even after
starting the vehicle, it indicates that there is some
problem with the vehicle’s electrical system and
the vehicle may not get start. Contact TVS Motor
Company Authorised Distributor or Dealer /
Authorised Service Centers immediately.
KNOW YOUR TVS XL 100
KNOW YOUR TVS XL 100
2
1
5
3 4
Please make a note that the failure of bulbs will not
be shown by the electrical system indicator lamp
(ESIL)**.
Note
** Applicable for ‘i-Touch Start’ models only

TVS XL Series Specifications

General

Displacement	99.7 cc
Maximum Torque	6.5 Nm @ 3500 rpm
Fuel System	Carburetor
Front Brake	Drum
Rear Brake	Drum
Starting Method	Kick Start
Engine Type	Single Cylinder, 4-Stroke
Front Suspension	Telescopic
Rear Suspension	Swing Arm with Hydraulic Shock Absorber
Fuel Tank Capacity	4 liters
Kerb Weight	80 kg
Wheel Type	Spoke
Tyre Type	Tube
Front Tyre Size	2.50 - 16
Rear Tyre Size	2.50 - 16
Seat Height	770 mm
Ground Clearance	150 mm
Transmission	Single Speed Gearless
