TVS XL Series User Manual

3. If the measured free play is more or less than
the specified limit, adjust the nut provided at
the rear wheel end to obtain the correct play.
4. Turn the adjuster nut in clockwise direction for
reducing the free play or turn it in anticlockwise
direction for increasing the free play.
MAINTENANCE
B
A
Warning
Replace the brake shoes as a set, it the wear limit
indicator shows beyond the wear limit even after
indexing the lever.

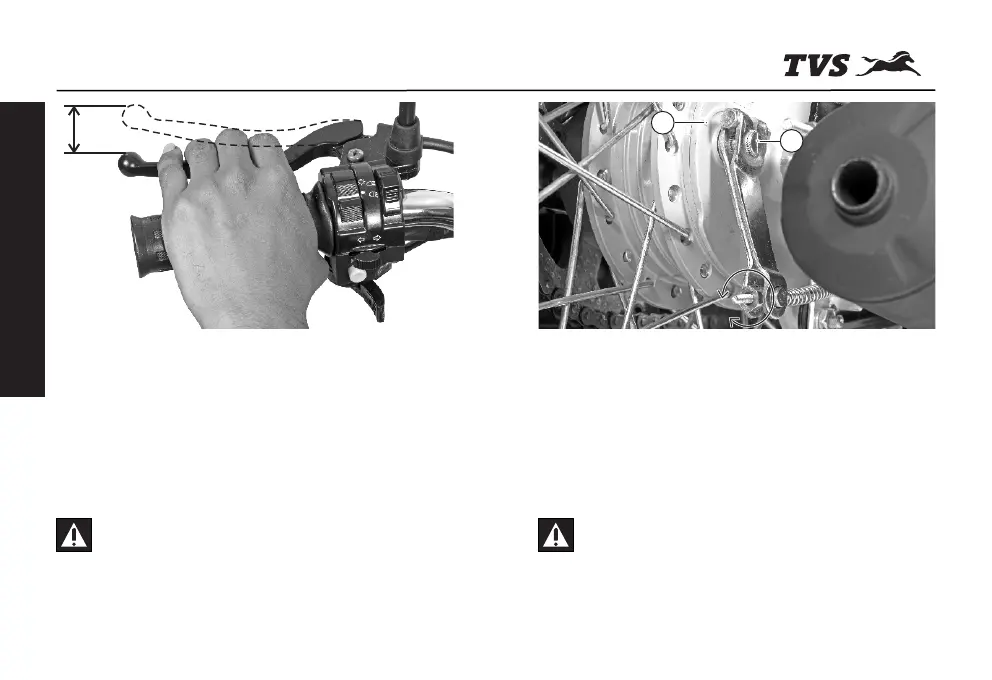

Brake shoe wear limit indicator
When the brake is applied, wear limit index mark
(A) on front and rear brake cams should be within
the range of wear limit indicator (B) on the front and
rear brake panel. Incase the index mark is going
beyond the wear limit, index the lever to next slot
with the help of Dealer to extended shoe life.
-30-
Warning
Check the brake play periodically. However the
brake play needs to be adjusted more frequently
depending upon the usage.
MAINTENANCE

TVS XL Series Specifications

General

Displacement	99.7 cc
Maximum Torque	6.5 Nm @ 3500 rpm
Fuel System	Carburetor
Front Brake	Drum
Rear Brake	Drum
Starting Method	Kick Start
Engine Type	Single Cylinder, 4-Stroke
Front Suspension	Telescopic
Rear Suspension	Swing Arm with Hydraulic Shock Absorber
Fuel Tank Capacity	4 liters
Kerb Weight	80 kg
Wheel Type	Spoke
Tyre Type	Tube
Front Tyre Size	2.50 - 16
Rear Tyre Size	2.50 - 16
Seat Height	770 mm
Ground Clearance	150 mm
Transmission	Single Speed Gearless
