ENGINE CUM TRANSMISSION OIL
LEVEL
Check the engine cum transmission oil level
periodically.
1. Place the vehicle on center stand on a flat
surface. Wipe-off the surroundings of the
gauge oil level.
2. Remove the gauge oil level and wipe it clean.
3. Fix the gauge oil level back to its mounting hole.
Do not thread in.
4. Take out the gauge oil level and check the level
of the oil.
MAINTENANCE
Caution
If the vehicle is driven with less engine cum
transmission oil, engine components will be
severely damaged. Check the oil level as per the
schedule to avoid costly damage.
Do not fill excess oil may cause oil leak. Always use
‘TVS TRU4 PREMIUM oil‘ (SAE 10W30 API-SL,
JASO MA2) only.

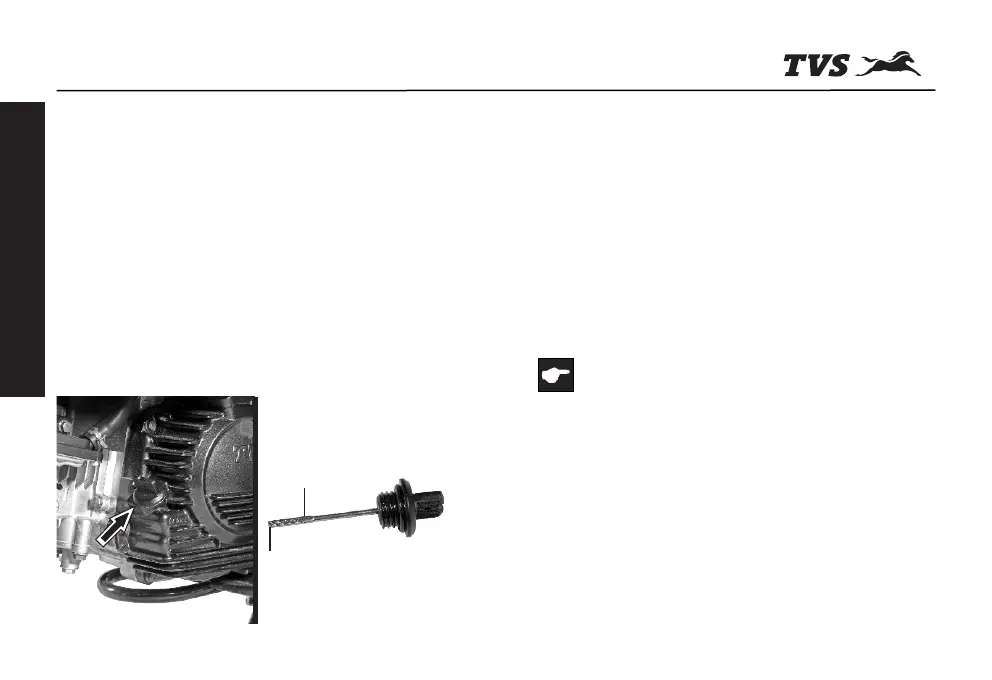

5. The oil level should be between minimum and
maximum level marks of the gauge as shown in
the figure.
6. If the oil level is less than the minimum level,
add ‘TVS TRU4 PREMIUM oil‘ (SAE 10W30
API-SL, JASO MA2) upto the maximum level
mark.
7. Wipe out the oil traces with a clean cloth to
prevent dust accumulation and assemble back
the gauge oil level.
-28-
Maximum
Minimum
MAINTENANCE
