TVS XL Series User Manual

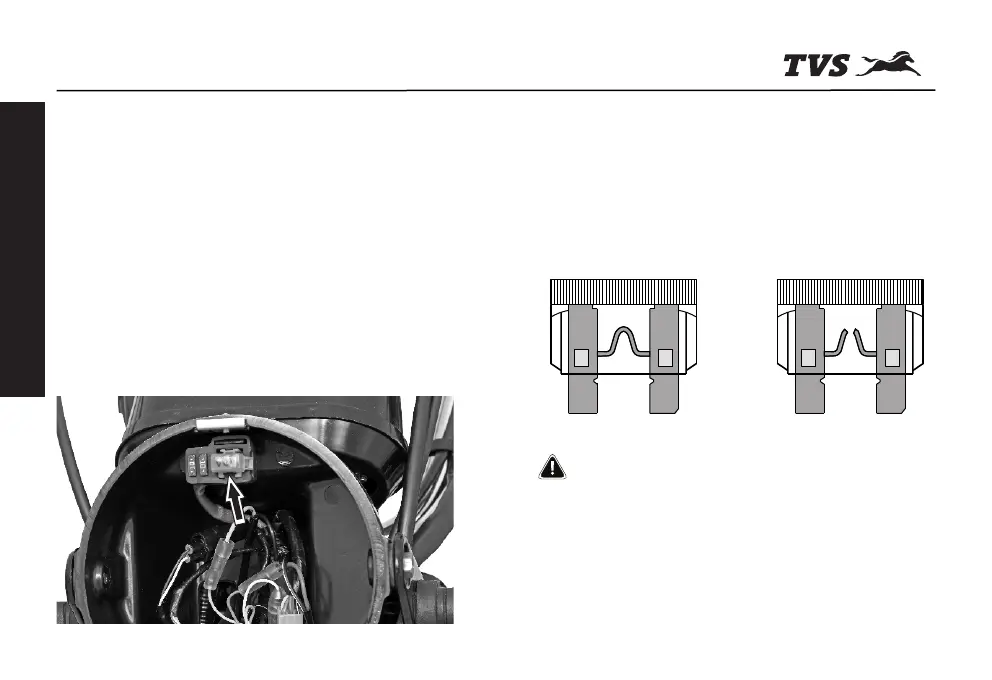

Lighting fuse
1. Turn ‘OFF’ the Ignition.
2. Remove the screws from the headlamp
housing assembly on both sides and gently
take out the ref lector unit.
3. Take out fuse case from the housing head
lamp.
4. Open the fuse case and pull out the blown fuse.
5. Replace the blown fuse with a new (extra fuse
is provided near the fuse case itself ).
6. Close the fuse case and re-fix it properly into its
location.
MAINTENANCE
Good Fuse
Blown Fuse
Do not use vehicle by shorting the wires without
fuse. This may result in overheating of electrical items
/ wiring and may result in fire.
Do not use fuse of higher amperage than specified for
the safety of electrical system.
Caution
-26-
7. Turn ‘ON’ the ignition lock and check for proper
functioning of the electrical systems. lncase
the fuse fails again, consult the nearest TVS
Motor Company Authorised Distributor or
Dealer / Authorised Service Centers.
MAINTENANCE

TVS XL Series Specifications

General

Displacement	99.7 cc
Maximum Torque	6.5 Nm @ 3500 rpm
Fuel System	Carburetor
Front Brake	Drum
Rear Brake	Drum
Starting Method	Kick Start
Engine Type	Single Cylinder, 4-Stroke
Front Suspension	Telescopic
Rear Suspension	Swing Arm with Hydraulic Shock Absorber
Fuel Tank Capacity	4 liters
Kerb Weight	80 kg
Wheel Type	Spoke
Tyre Type	Tube
Front Tyre Size	2.50 - 16
Rear Tyre Size	2.50 - 16
Seat Height	770 mm
Ground Clearance	150 mm
Transmission	Single Speed Gearless
