TVS XL Series User Manual

FUSE REPLACEMENT**
Non-working of electrical systems may be due to
safety fuse failure. Short circuit or overload in the
electrical system are the main causes for fuse
failure. Two different fuses are provided in the XL
100 they are:
l Main fuse - 15A
l Lighting fuse - 10A

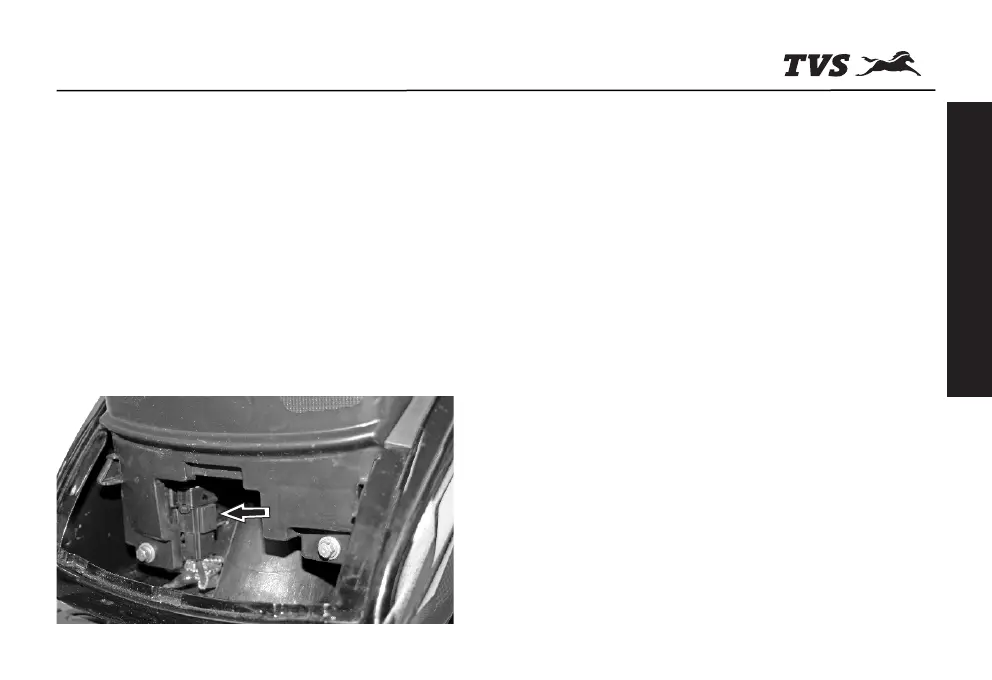

The main fuse is located inside the tool box below
battery and the lighting fuse is located inside the
head lamp.
Follow the procedure given below to inspect and
replace the fuse:
Main fuse
1. Turn ‘OFF’ the Ignition.
2. Remove the lid tool box as explained in page
no. 12
3. Take out the fuse case.
4. Open the fuse case and pull out the blown fuse.
5. Replace the blown fuse with a new (extra fuse
is provided in the wiring harness itself in a
pouch).
6. Close the fuse case and re-fix it properly into its
location.
7. Turn ‘ON’ the ignition lock and check for proper
functioning of the electrical systems. lncase
the fuse fails again, consult the nearest TVS
Motor Company Authorised Distributor or
Dealer / Authorised Service Centers.
MAINTENANCE
-25-
** Applicable for ‘i-Touch Start’ models only
MAINTENANCE

TVS XL Series Specifications

General

Displacement	99.7 cc
Maximum Torque	6.5 Nm @ 3500 rpm
Fuel System	Carburetor
Front Brake	Drum
Rear Brake	Drum
Starting Method	Kick Start
Engine Type	Single Cylinder, 4-Stroke
Front Suspension	Telescopic
Rear Suspension	Swing Arm with Hydraulic Shock Absorber
Fuel Tank Capacity	4 liters
Kerb Weight	80 kg
Wheel Type	Spoke
Tyre Type	Tube
Front Tyre Size	2.50 - 16
Rear Tyre Size	2.50 - 16
Seat Height	770 mm
Ground Clearance	150 mm
Transmission	Single Speed Gearless
