TVS XL Series User Manual

BRAKES
Front brake

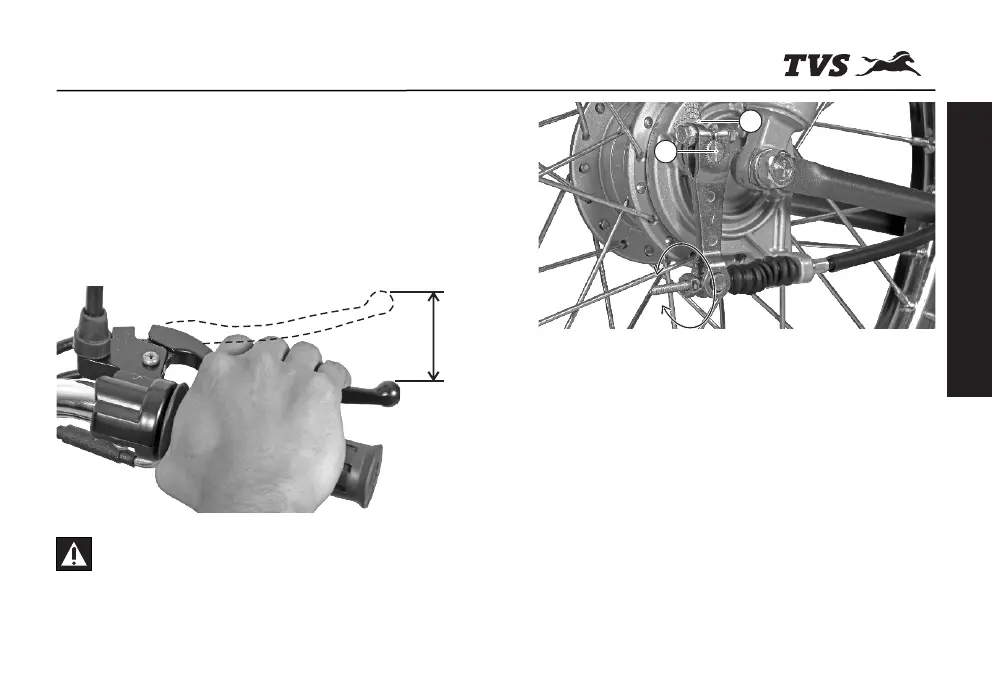

1. Measure the free play of the front brake lever at
the lever end as shown in the figure.
2. The free play of the brake lever before the
engagement of the brake should be between
15 ~ 20 mm.
3. If the measured free play is more or less than
the specified limit, adjust the nut provided at
the front wheel end to obtain the correct play.
4. Turn the adjuster nut in clockwise direction for
reducing the free play or turn it in anticlockwise
direction for increasing the free play.
Rear brake
1. Measure the free play of the rear brake lever at
the lever end as shown in the figure.
2. The free play of the brake lever before the
engagement of the brake should be between
15 ~ 20 mm.
MAINTENANCE
A
B
-29-
Warning
Brakes are items of personal safety and should
always be maintained in proper condition.
MAINTENANCE

TVS XL Series Specifications

General

Displacement	99.7 cc
Maximum Torque	6.5 Nm @ 3500 rpm
Fuel System	Carburetor
Front Brake	Drum
Rear Brake	Drum
Starting Method	Kick Start
Engine Type	Single Cylinder, 4-Stroke
Front Suspension	Telescopic
Rear Suspension	Swing Arm with Hydraulic Shock Absorber
Fuel Tank Capacity	4 liters
Kerb Weight	80 kg
Wheel Type	Spoke
Tyre Type	Tube
Front Tyre Size	2.50 - 16
Rear Tyre Size	2.50 - 16
Seat Height	770 mm
Ground Clearance	150 mm
Transmission	Single Speed Gearless
