TVS XL Series User Manual

-4-
KNOW YOUR TVS XL 100
CONTROL KEY
TVS XL 100 comes with a pair of identical control
keys. These keys are to operate ignition switch,
steering lock, fuel tank cap, tool box lock and seat
lock*.

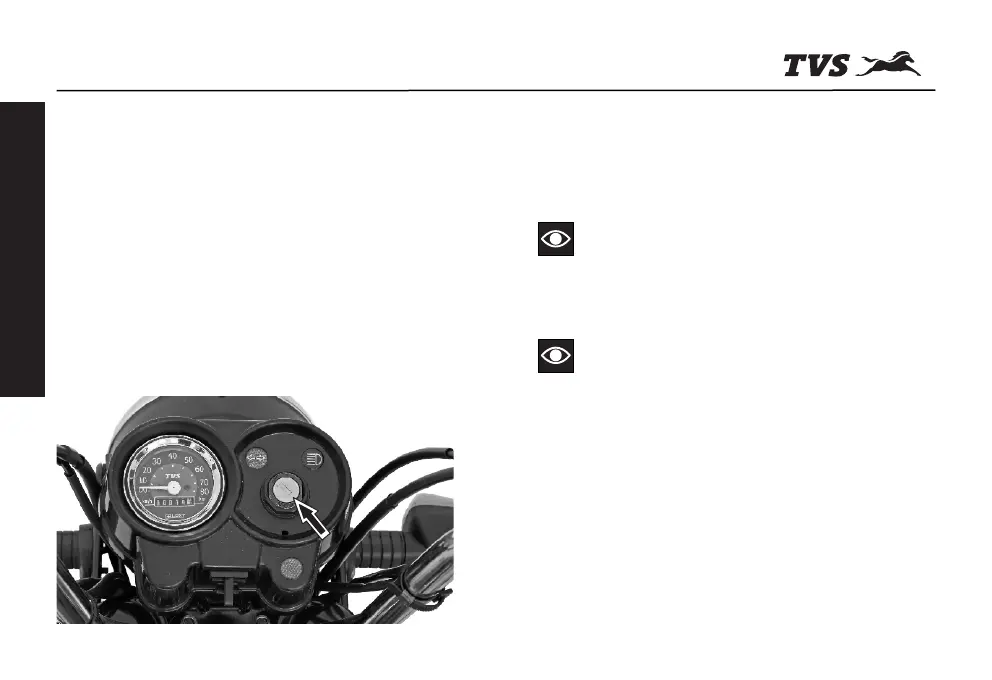

IGNITION SWITCH
The ignition switch has two positions:
1. ‘OFF’ position
All the electrical circuits are turned ‘OFF‘ in this
position. Engine will not start. Key can be taken
out.
2. ‘ON’ position
In this position, all the electrical circuits are ‘ON’
and the engine can be started now. Key cannot be
removed in this position.
KNOW YOUR TVS XL 100
Tail lamp, day time running (DRL), brake lamp and
head lamp glows only after starting the vehicle.
If the vehicle is not started for more than
30 minutes after switching on the ignition key the
vehicle may not start with the self start. Turn OFF
the ignition key and turn it ON again to start the
vehicle using self start.**
Keep the ignition key in off position, when the
vehicle is not in use, to prevent battery drain.**
Note
Note
* Seat lock is not applicable for Comfort models
** Applicable for ‘i-Touch Start’ models only

TVS XL Series Specifications

General

Displacement	99.7 cc
Maximum Torque	6.5 Nm @ 3500 rpm
Fuel System	Carburetor
Front Brake	Drum
Rear Brake	Drum
Starting Method	Kick Start
Engine Type	Single Cylinder, 4-Stroke
Front Suspension	Telescopic
Rear Suspension	Swing Arm with Hydraulic Shock Absorber
Fuel Tank Capacity	4 liters
Kerb Weight	80 kg
Wheel Type	Spoke
Tyre Type	Tube
Front Tyre Size	2.50 - 16
Rear Tyre Size	2.50 - 16
Seat Height	770 mm
Ground Clearance	150 mm
Transmission	Single Speed Gearless
