l If the voltage measured is less than 12.4 Volts,
charge the battery using recommended battery
charger at TVS Motor Company Authorised
Distributor or Dealer / Authorised Service
Centers.

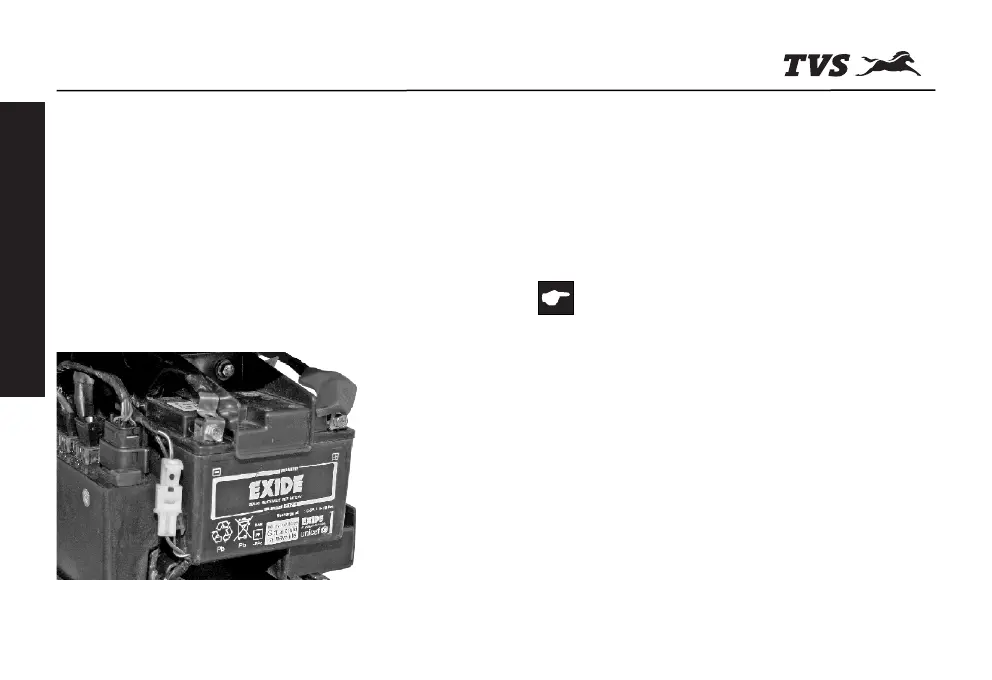

l While connecting the terminals, observe the
correct polarity. Connect the red wire to the ‘+’
terminal and black wire to the ‘-’ terminal of the
battery.
l Apply petroleum jelly at terminals to prevent it
from corrosion.
MAINTENANCE
Caution
Never check the battery charge by shorting the
terminals. Always connect the positive terminal
first (red wire) and then negative (black wire) to
avoid sparking.
The inversion of the battery wires can damage the
battery and the recharging system.
If the battery is removed from the vehicle, please
ensure to tape the terminals of the wiring harness
to avoid the terminals make contact with each
other which will prevent the vehicle from starting.
-24-
l Do not add any additional electrical accessories
which may affect the battery life and also
results in startability issue.
lncase of any abnormality or for removal of battery
from the vehicle, contact TVS Motor Company
Authorised Distributor or Dealer / Authorised
Dealer.
MAINTENANCE

TVS XL Series Specifications

General

Displacement	99.7 cc
Maximum Torque	6.5 Nm @ 3500 rpm
Fuel System	Carburetor
Front Brake	Drum
Rear Brake	Drum
Starting Method	Kick Start
Engine Type	Single Cylinder, 4-Stroke
Front Suspension	Telescopic
Rear Suspension	Swing Arm with Hydraulic Shock Absorber
Fuel Tank Capacity	4 liters
Kerb Weight	80 kg
Wheel Type	Spoke
Tyre Type	Tube
Front Tyre Size	2.50 - 16
Rear Tyre Size	2.50 - 16
Seat Height	770 mm
Ground Clearance	150 mm
Transmission	Single Speed Gearless
