TVS XL Series User Manual

Once the split pins are removed, replace them with
new ones.
Caution
MAINTENANCE
-34-

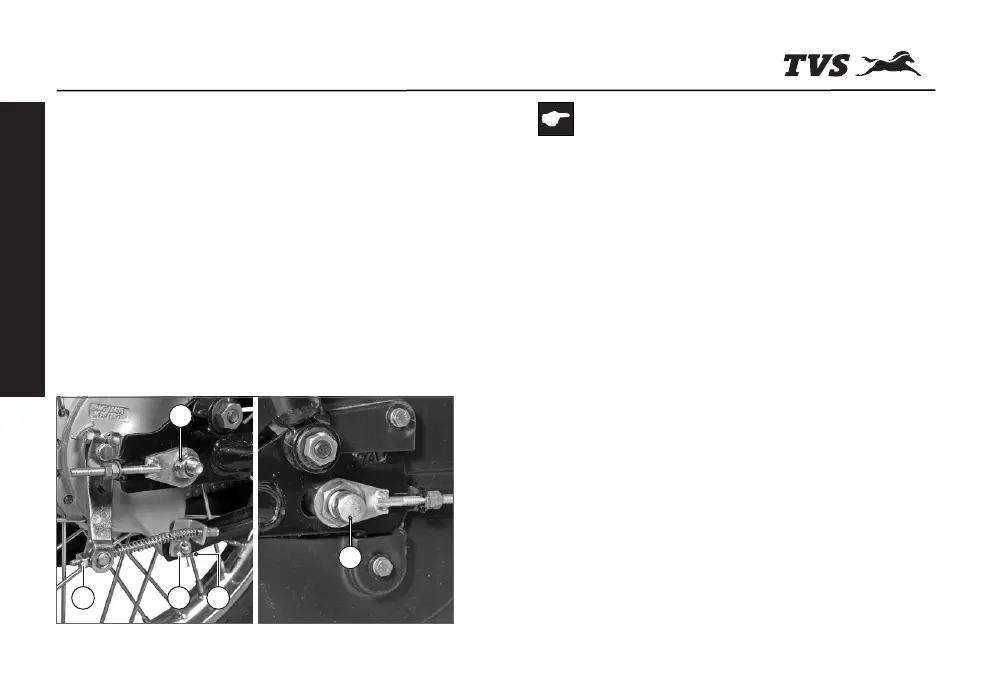

REAR WHEEL REMOVAL
1. Remove the rear brake adjuster nut (1) and
disconnect the brake cable from the brake
panel assembly.
2. Remove the split pin (2) and the nut (3).
Disconnect the torque link.
3. Remove the axle nut (4).
4. Pull out the axle (5) and take out the spacer
from the rear wheel assembly.
5. Tilt the vehicle to the left and take out the wheel
assembly along with the brake panel assembly.
6. Reverse the procedure for reassembly.
4
1 3
2
5
STORAGE PROCEDURES
For storage of your vehicle for longer periods of
over a month and above, we recommend to carry
out the following steps:
1. Clean the vehicle thoroughly. Park the vehicle
on center stand.
2. Empty the fuel tank. Turn the fuel cock lever to
‘OFF’ position.
3. Warm up the engine and drain engine cum
transmission oil. Store the oil, if new, in a dust
free container.
4. Run the engine with fuel cock OFF position till
the carburettor fuel bowl becomes empty.
5. Remove the spark plug and feed in several
drops of engine cum transmission oil through
spark plug hole. Crank the engine few times
and reinstall the spark plug.
6. Remove the battery, store it away from direct
sunlight and freezing temperatures.
MAINTENANCE

TVS XL Series Specifications

General

Displacement	99.7 cc
Maximum Torque	6.5 Nm @ 3500 rpm
Fuel System	Carburetor
Front Brake	Drum
Rear Brake	Drum
Starting Method	Kick Start
Engine Type	Single Cylinder, 4-Stroke
Front Suspension	Telescopic
Rear Suspension	Swing Arm with Hydraulic Shock Absorber
Fuel Tank Capacity	4 liters
Kerb Weight	80 kg
Wheel Type	Spoke
Tyre Type	Tube
Front Tyre Size	2.50 - 16
Rear Tyre Size	2.50 - 16
Seat Height	770 mm
Ground Clearance	150 mm
Transmission	Single Speed Gearless
