TVS XL Series User Manual

REAR SHOCK ABSORBERS

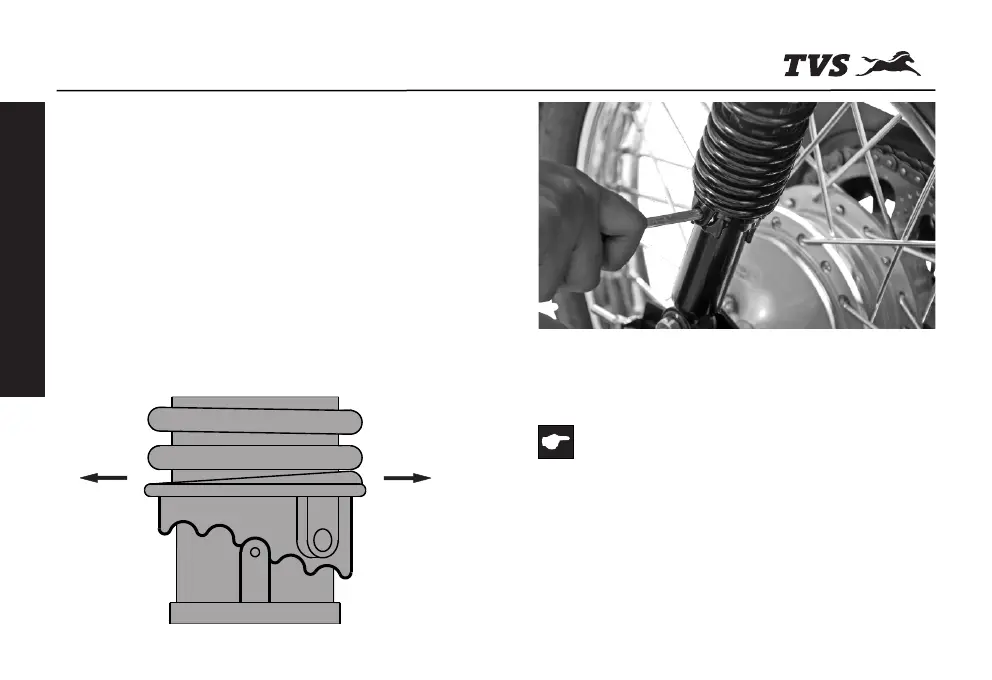

TVS XL 100 is provided with 5 step adjustable rear
shock absorbers to meet different load condition.
There are 5 notches for adjusting spring load. If the
spring is adjusted to the minimum notch, then the
shock absorber will be softer which is good for light
loads.
If the spring is adjusted to maximum notch, then it
will be stiffer which is good for heavy loads.
Adjust the spring preload by shifting the adjuster to
the required notch according to the different load
condition.
Caution
Keep both left and right shock absorbers spring
adjusters in the same position.
The more you compress the shock absorber
spring, the suspension becomes more stiff.
MAINTENANCE
-32-
HARD
SOFT
MAINTENANCE

TVS XL Series Specifications

General

Displacement	99.7 cc
Maximum Torque	6.5 Nm @ 3500 rpm
Fuel System	Carburetor
Front Brake	Drum
Rear Brake	Drum
Starting Method	Kick Start
Engine Type	Single Cylinder, 4-Stroke
Front Suspension	Telescopic
Rear Suspension	Swing Arm with Hydraulic Shock Absorber
Fuel Tank Capacity	4 liters
Kerb Weight	80 kg
Wheel Type	Spoke
Tyre Type	Tube
Front Tyre Size	2.50 - 16
Rear Tyre Size	2.50 - 16
Seat Height	770 mm
Ground Clearance	150 mm
Transmission	Single Speed Gearless
