TVS XL Series User Manual

SELF-MAINTENANCE PROCEDURES
BATTERY
TVS XL 100 ‘i-Touch Start’ vehicles are fitted with a
maintenance free battery and it is located inside
the tool box below seat’s front side.
Remove the lid tool box, cover tool box and cover
battery to access the battery by following the
procedure given below:
1. Remove the lid tool box as explained in page
no. 12.

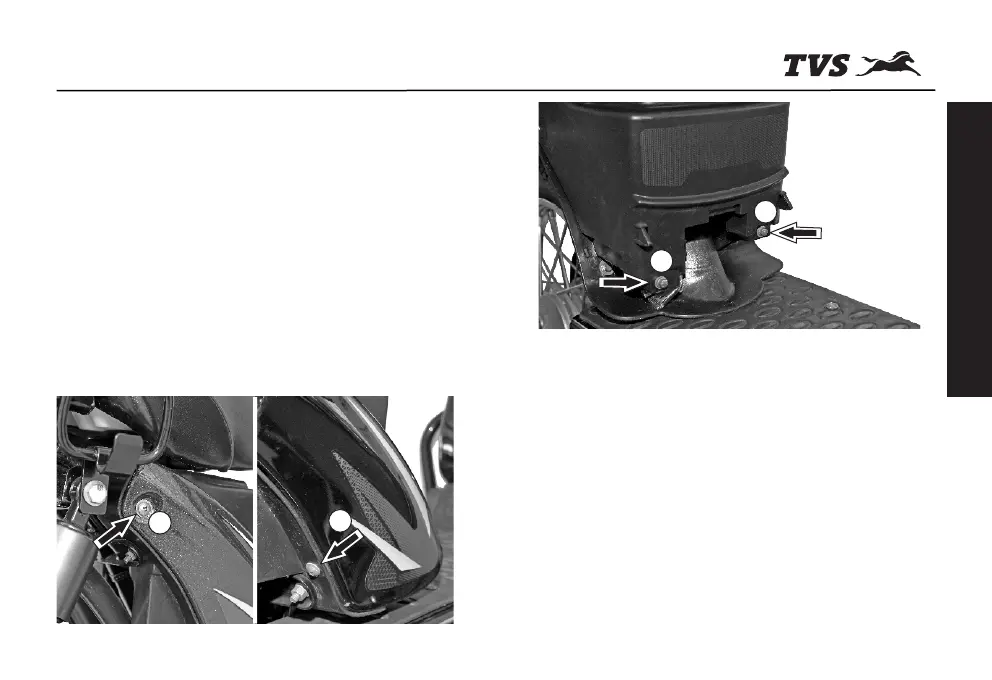

2. Remove the top mounting screws (A) from
both the sides of tool box.
3. Similarly, remove the bottom mounting screws
(B) from both side of tool box and take out the
tool box.
4. Remove the mounting bolts (C) form the cover
tool box and gently take out the cover.
Since the battery fitted in your vehicle is of
maintenance free type (MF), it is not required to
top-up the battery with distilled water. But to
ensure the performance and long life of the battery
follow the steps given below:
l Check and ensure the battery voltage as per the
maintenance schedule given in page no. 21.
MAINTENANCE
A
B
-23-
C
C
MAINTENANCE

TVS XL Series Specifications

General

Displacement	99.7 cc
Maximum Torque	6.5 Nm @ 3500 rpm
Fuel System	Carburetor
Front Brake	Drum
Rear Brake	Drum
Starting Method	Kick Start
Engine Type	Single Cylinder, 4-Stroke
Front Suspension	Telescopic
Rear Suspension	Swing Arm with Hydraulic Shock Absorber
Fuel Tank Capacity	4 liters
Kerb Weight	80 kg
Wheel Type	Spoke
Tyre Type	Tube
Front Tyre Size	2.50 - 16
Rear Tyre Size	2.50 - 16
Seat Height	770 mm
Ground Clearance	150 mm
Transmission	Single Speed Gearless
