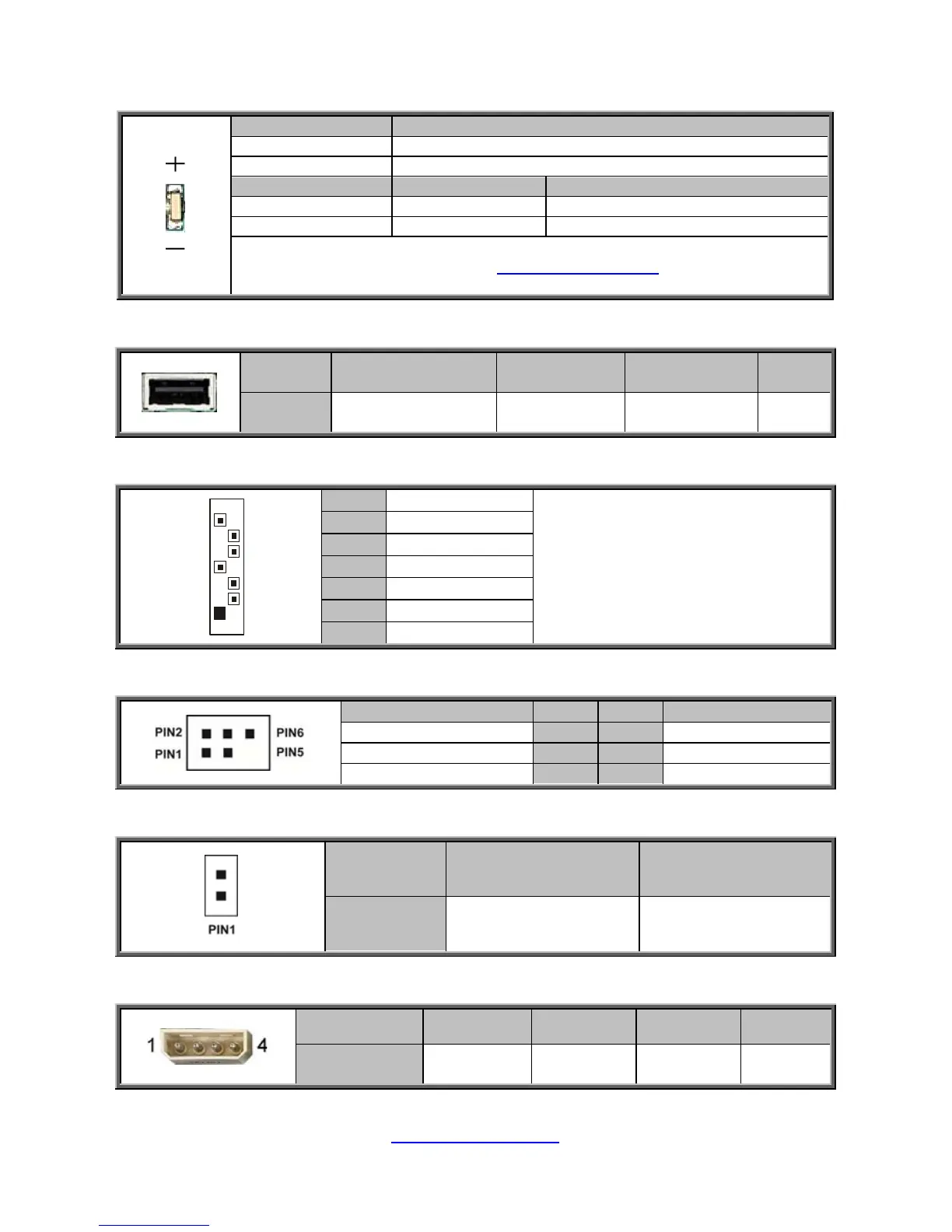

LED1 / SW1: ID LED and ID LED Button
Pin Signal
+ P3V3_AUX
- ID_SW_L
State Color Description
On Blue System identified
Off Off System not identified
NOTE: The ID LED can be activated remotely using IPMI.
Please visit the TYAN Web Site at http://www.tyan.com to download the
latest IPMI Configuration Guide for more details.
J58/J59: Vertical Type-A USB Connector
Pin 1 2 3 4
Signal USB 5V Power USB Data- USB Data+ GND
J56/J57: SATA2.0 Connector
7
1
1 GND
Connects to the Serial ATA ready
drives via the Serial ATA cable.
J56: SATA4
J57: SATA5
2 SATA TX DP
3 SATA TX DN
4 GND
5 SATA RX DN
6 SATA RX DP
7 GND
J26: SATA SGPIO Header for BB HD Board
Signal Pin Pin Signal
3.3V Standby 1 2 SMB SCL
GND 3 4 SMB SDA
KEY 5 6 BP HDD FAULT
J18: Flash Security Override Header
Pin 1 2
Signal Signal Input GND
PW1: 4-pin HDD Power Connector
Pin 1 2 3 4
Signal +12V GND GND +5V
