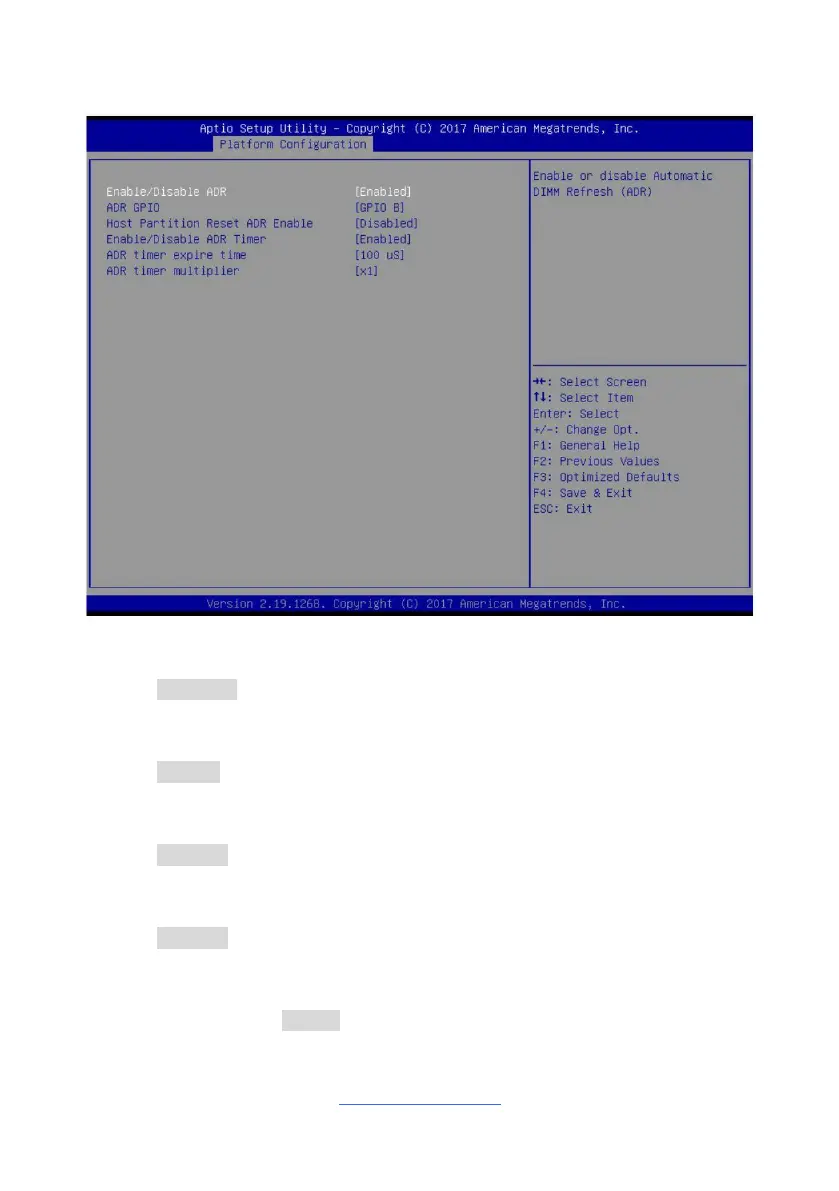

5.4.1.5 PCH DFX Configuration
Enable/Disable ADR
Enable or disable Automatic DIMM Refresh (ADR)
Enabled / Disabled
ADR GPIO
Select between GPIO_B or GPIO_C
GPIO B / GPIO C
Host Partition Reset ADR Enable
Enables/Disables ADR on Host Partition Reset
Enabled / Disabled
Enable/Disable ADR Timer
Held-off for DEBUG PURPOSES ONLY!
Enabled / Held-off
ADR timer expire time
Select proper ADR timer value: 25uS,50uS,100uS or 0.
25 uS / 50 uS / 100 uS / 0 uS
