2.1 Installing Motherboard Components
This section describes how to install components on to the motherboard, including
CPUs, memory modules and Add-on cards.

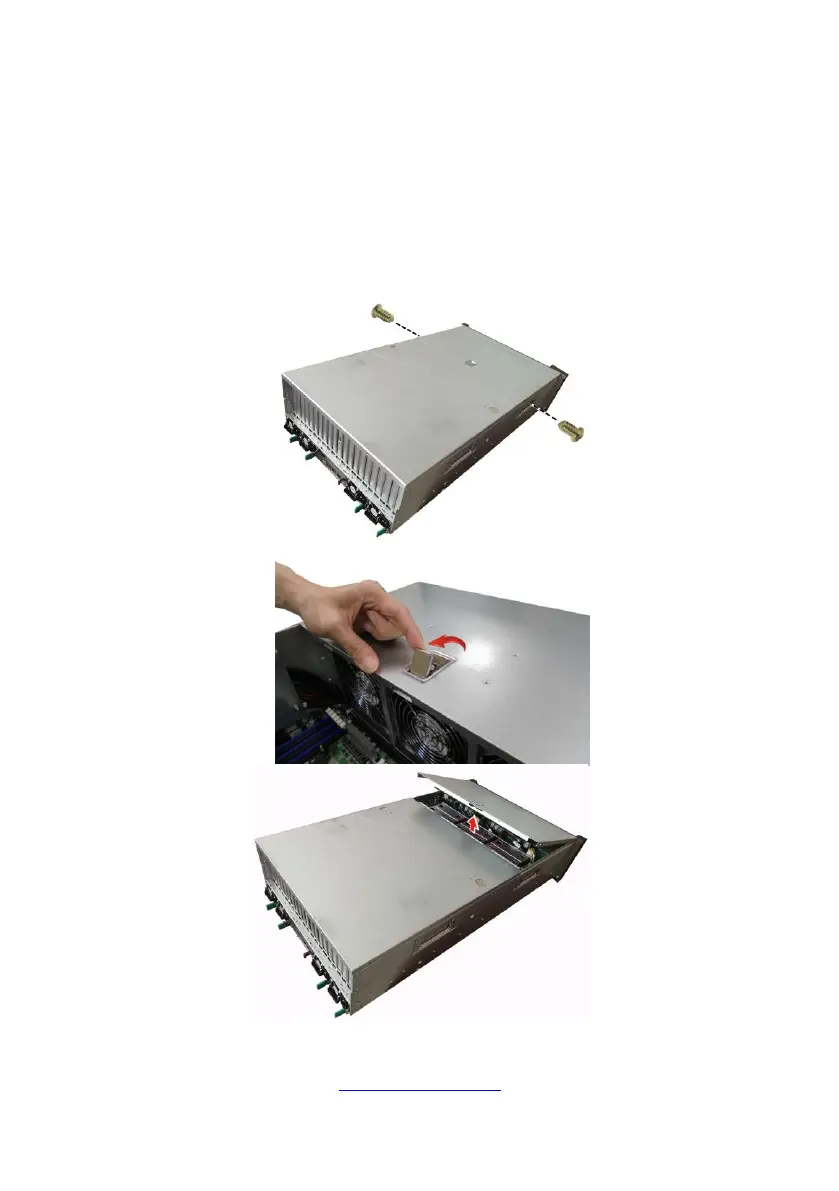

2.1.1 Removing the Chassis Cover
Follow these instructions to remove FT83-B7119 chassis cover.
1. Remove the screw from the front top cover.
2. Release the latch to lift up the front top cover from the chassis.
3. Release the two screws on the back side as illustrated in the image.
To Next Page
