2.2 Rack Mounting
After installing the necessary components, the TYAN FT83-B7119 can be mounted
in a rack using the supplied rack mounting kit.

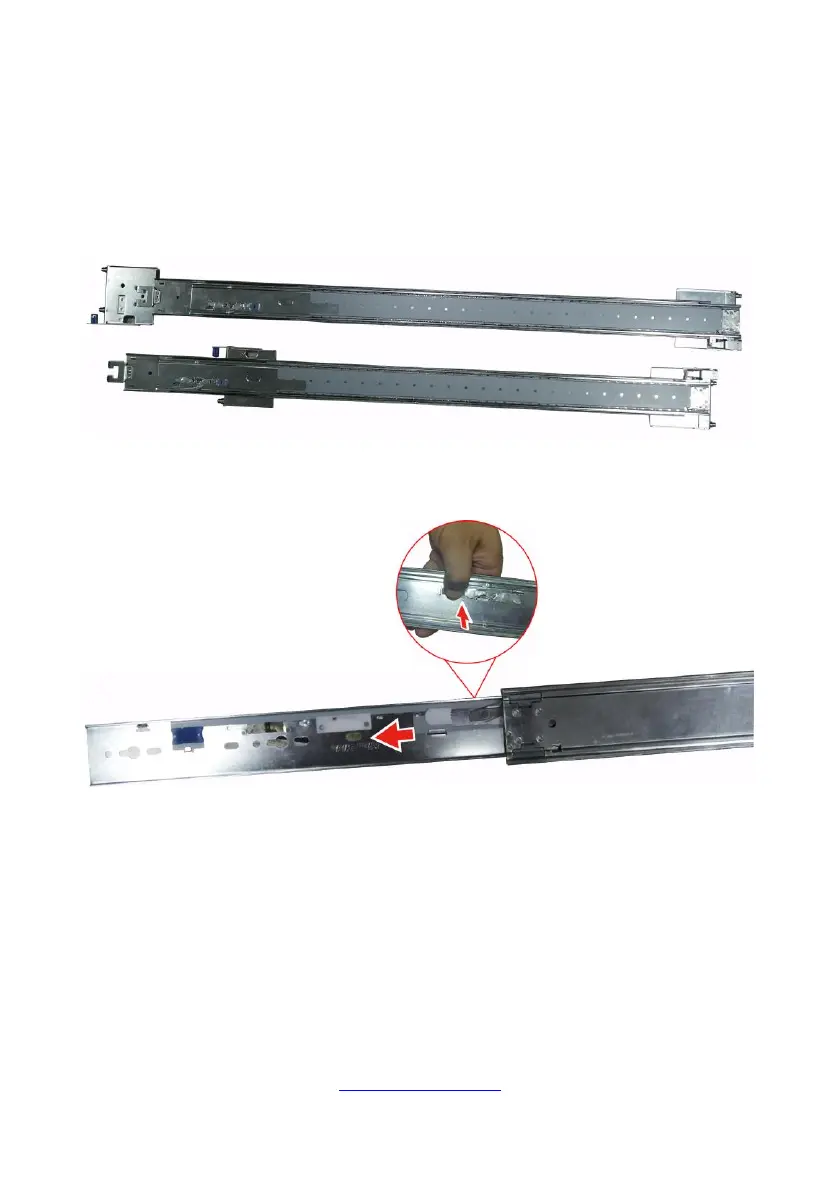

Sliding Rail Kit (outer rail)
Sliding Rail Kit (inner rail)
Press the button, to pull out the inner rail from the outer rail.
NOTE: Before mounting the TYAN FT83-B7119 in a rack, ensure that the right or left
inner rail have been installed correctly. If not, the power cable module cannot be
installed on the chassis kit.
