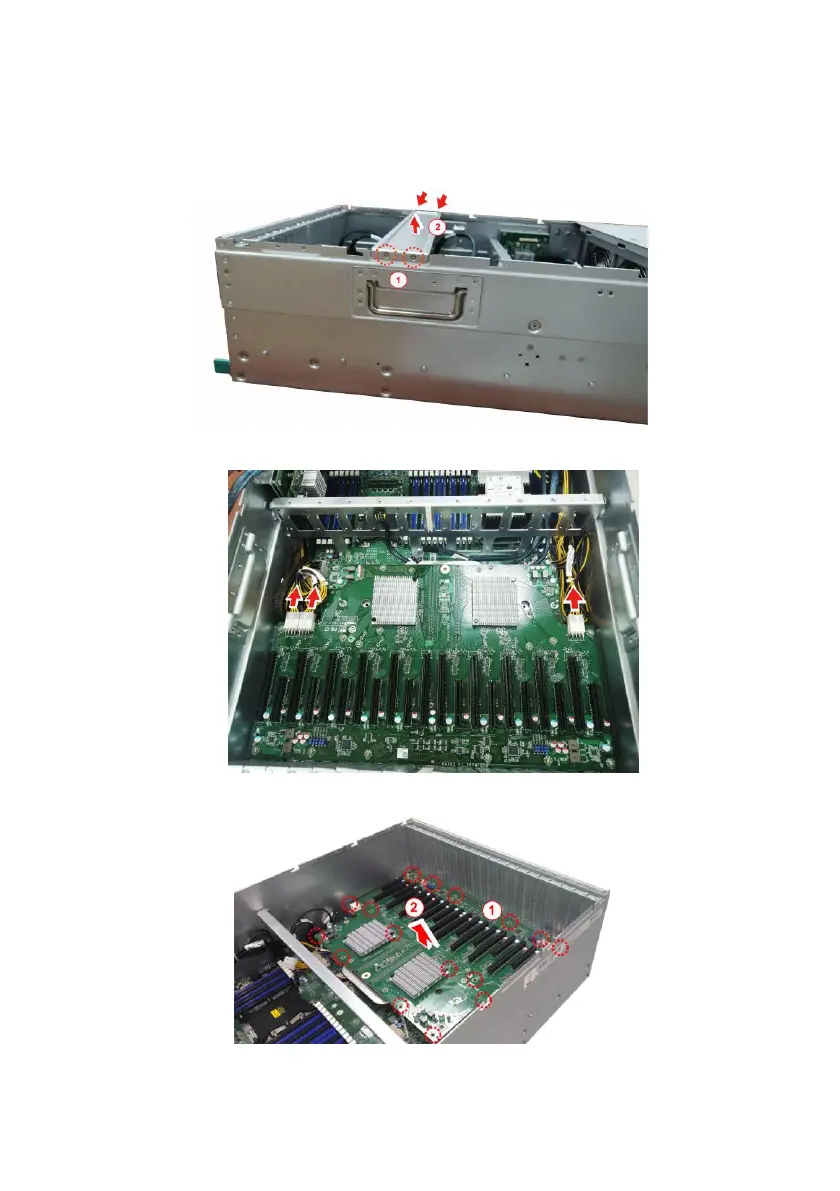

3.9 Replacing PCIE Board
Follow these instructions to replace the M7119FA77-IO PCIE Board.
1. Unscrew to remove the GPU Bracket.
2. Disconnect all cables connected to the PCIE Board.
3. Unscrew to lift up the PCIE Board Bracket (totally 16 screws).
