TYAN FT83-B7119 - 3.11 Replacing the Rear IO Board

72
http://www.tyan.com
3.11 Replacing the Rear IO Board

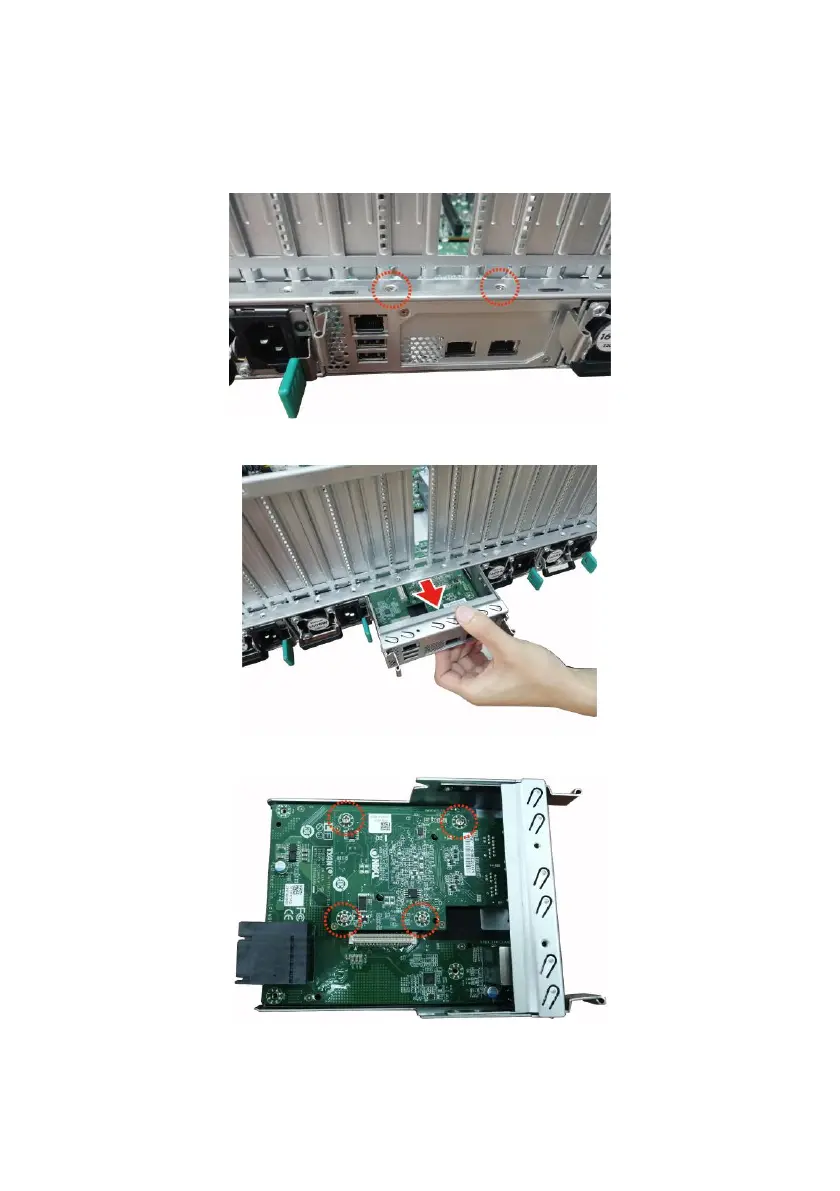

Follow these instructions to replace the M7119FA77-RIO Rear IO Board.
1. Unscrew the Rear IO Bracket.
2. Push both latches to pull the Rear IO Bracket out.
3. Unscrew to remove the iron bracket.
