2.1.4 Installing the Expansion Card (PCIE Board)
Follow these instructions to install the PCIE cards.

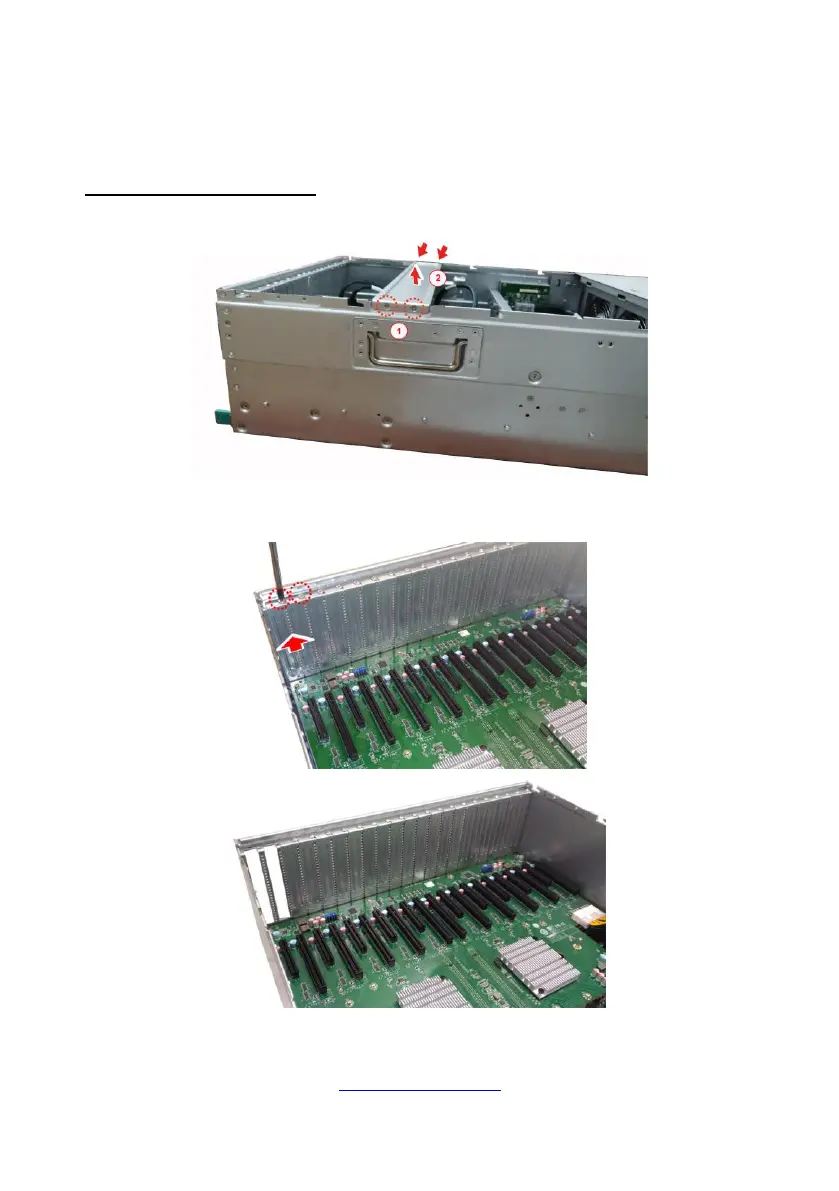

Installing Expansion Cards
1. Unscrew to remove the GPU Bracket.
2. Locate the PCI-E Gen.3 x16 slot on the motherboard. Unscrew to take out
the dummy brackets.
