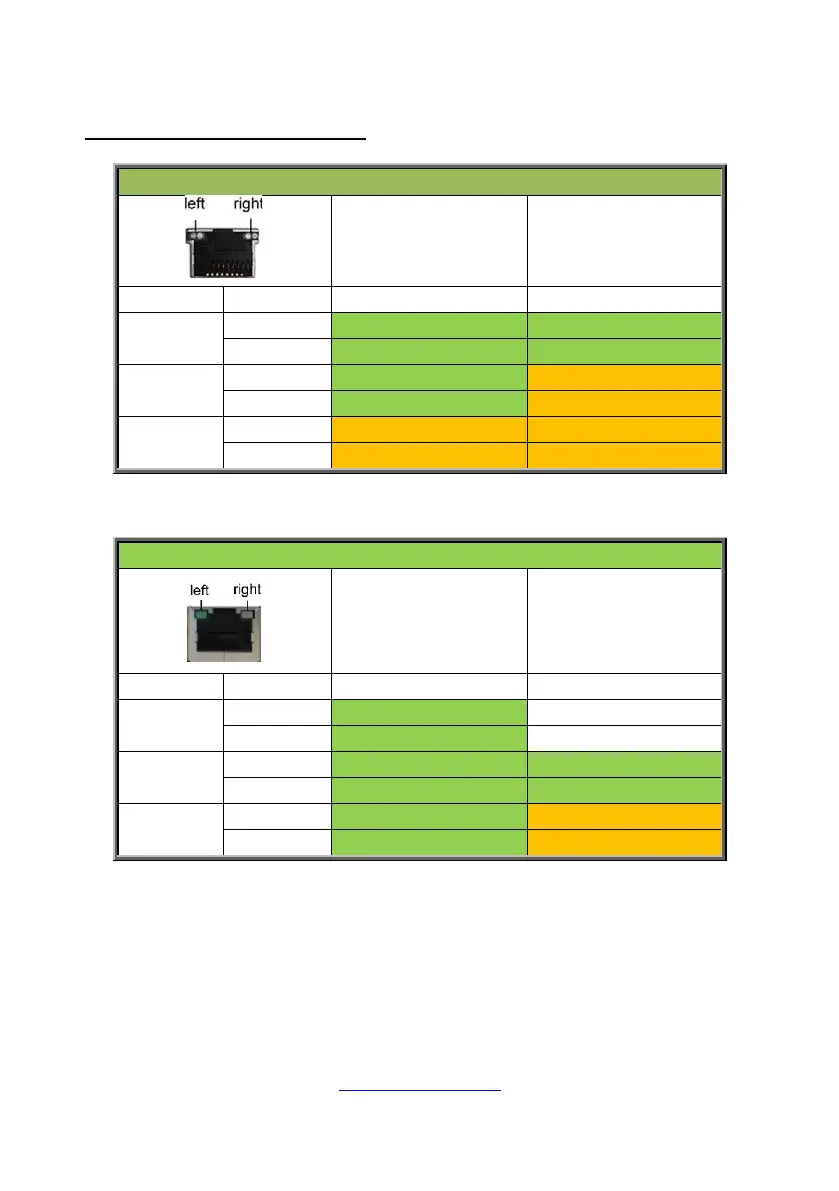

1.5.3 LED Definitions
10Gbps LAN Port LAN Indication
10/100/1000 Mbps LAN Link/Activity LED Scheme
Left LED
(Link/Activity)
Right LED
(Speed)
No Link
OFF
OFF
100 Mbps
Link
Solid Green
Solid Green
Active
Blinking Green
Solid Green
1000 Mbps
Link
Solid Green
Solid Amber
Active
Blinking Green
Solid Amber
(10Gbps)
Link
Solid Amber
Solid Amber
Active
Solid Amber
Solid Amber
1Gbps LAN Port LAN Indication
1Gbps LAN Link/Activity LED Scheme
Left LED
(Link/Activity)
LED Color: Green
Right LED
(Speed)
LED Color: Amber
No Link
OFF
OFF
10 Mbps
Link
Green Solid On
OFF
Active
Green Blinking
OFF
100 Mbps
Link
Green Solid On
Green Solid On
Active
Green Blinking
Green Solid On
1000 Mbps
(1Gbps)
Link
Green Solid On
Amber Solid On
Active
Green Blinking
Amber Solid On
NOTE: “Left” and “Right” are viewed from the rear panel.
