TYAN FT83-B7119 - Internal View

29
http://www.tyan.com

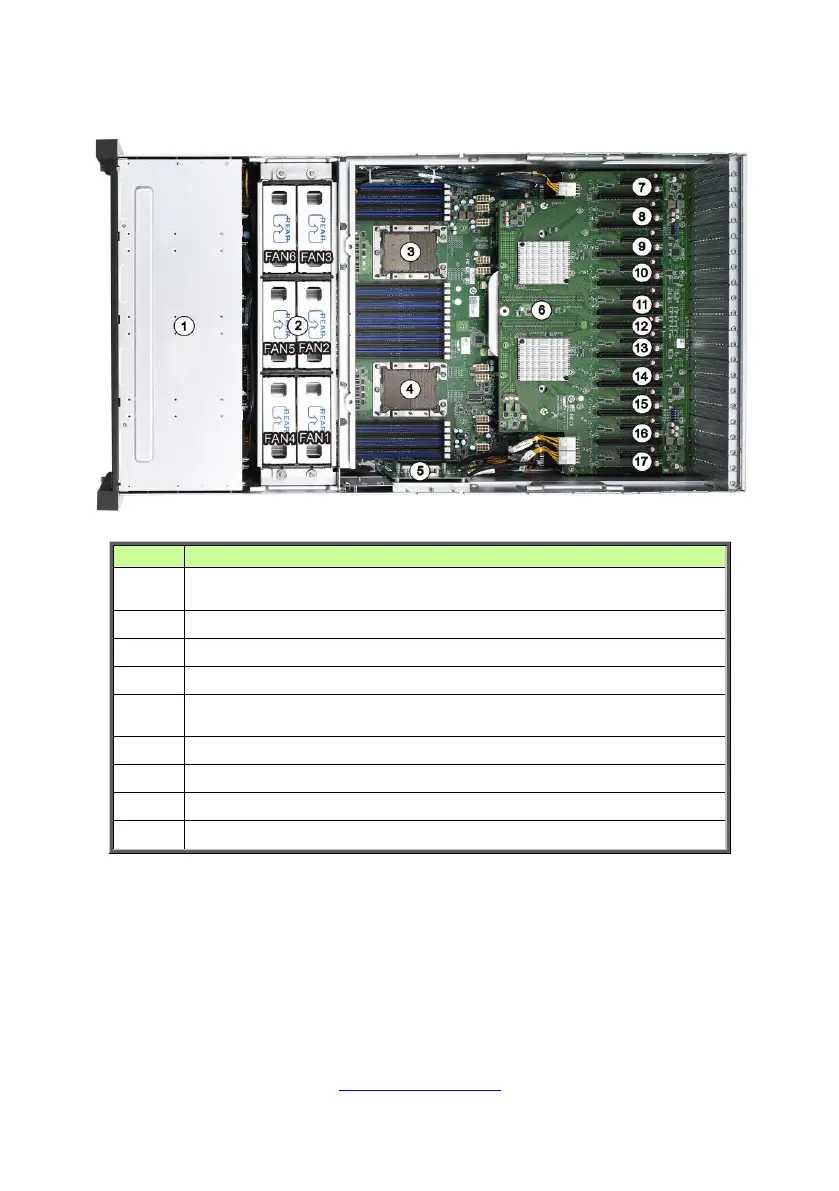

1.5.4 Internal View
NO.
Explanation
1.
(12) 3.5” HDDs/SSDs (HDD0 ~ HDD11) w/
M1297T65-BP12E-12 HDD BP Board pre-installed
2
System Fans
3
CPU0
4
CPU1
5
PCIE Gen3 x16 OCP2.0 Slot for SAS Card (from CPU#1,
M2217-L16-IO pre-installed)
6
M7119FA77-IO PCIE Board
7~11
PCIE Gen3 x16 Slots (FH/FL, GPU#1 ~ GPU#5)
12
PCIE Gen3 x16 Slot (FH/FL)
13~17
PCIE Gen3 x16 Slots (FH/FL, GPU#6 ~ GPU#10)
