DRIVE STATE
Active LED (Green)
Status LED (Red)
Drive Present, No Active
Solid on
Off
Drive Present with Active
Blinking
Off
Drive Failure
Don’t care
Solid on
RAID Rebuild
Don’t care
Blinking @4 Hz
Drive Locate Identifier
Don’t care
Blinking @1 Hz

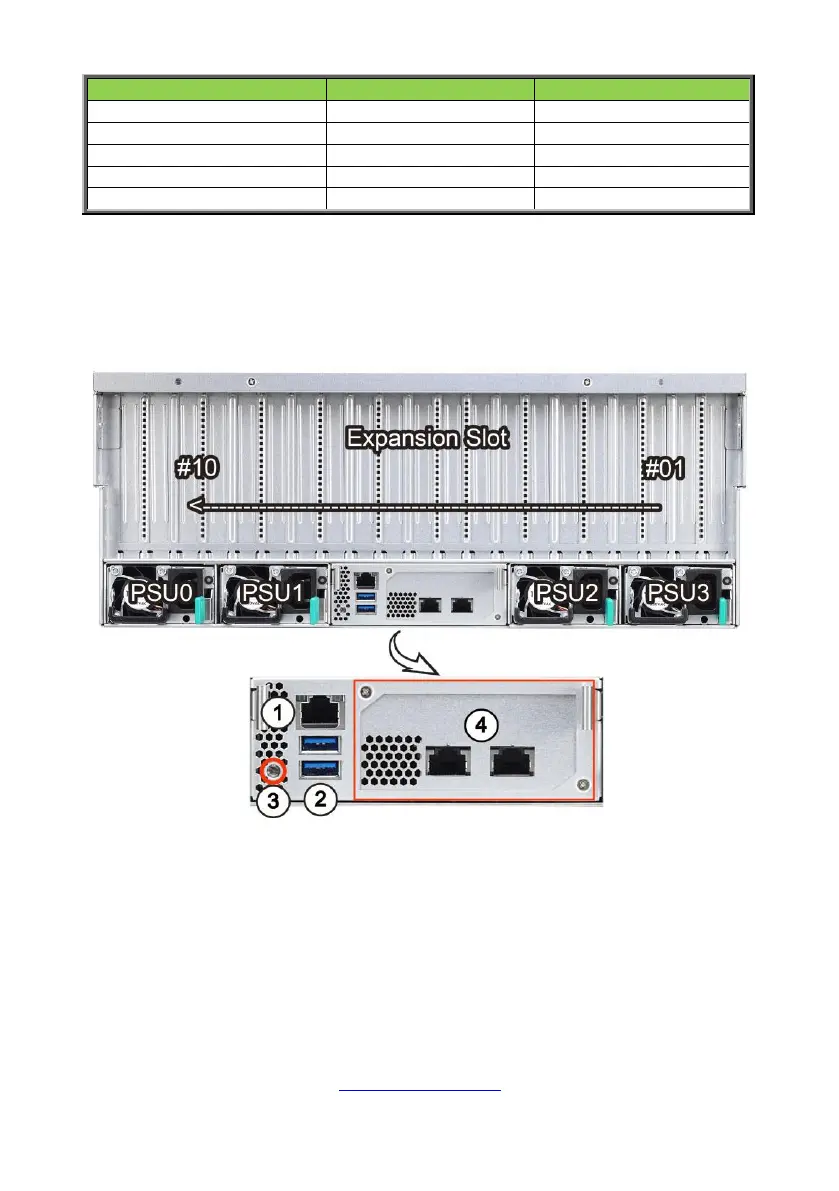

1.5.2 System Rear View
1. LAN1: from Realtek RTL8211E PHY for IPMI
2. USB 3.0 x 2
3. ID BTN/ LED
4. OCP Card Area: via PCIex16 OCP2.0 slot add (2)SFP+ or (2)RJ45 ports
NOTE:
1. M7119FA77-RIO is pre-installed.
2. M7108-X550-2T LAN Card is pre-installed in this picture.
