3.10 Replacing the IO Bridge Board
Follow these instructions to replace the M2218-GF16/M2221-GF24 IO Bridge
Board.

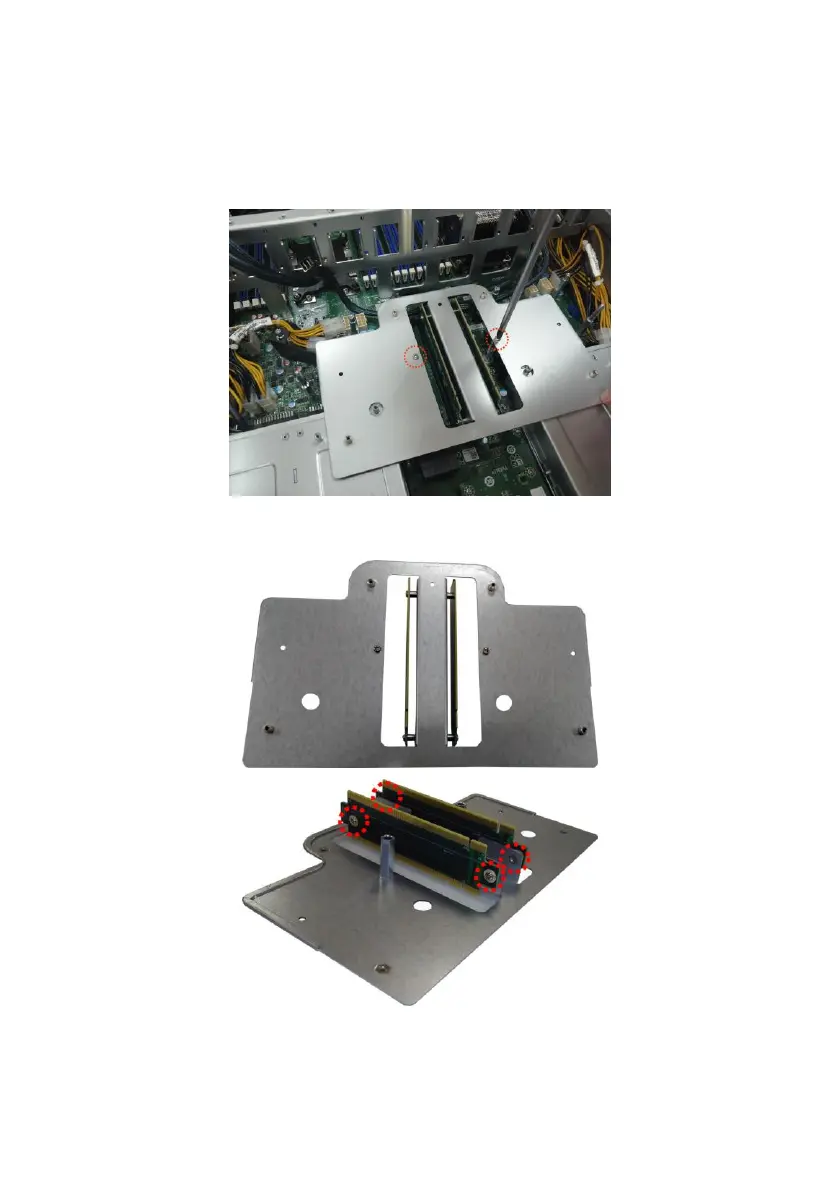

1. Unscrew the M7119FA77-IO PCIE Board Bracket.
2. Flip the IO Bridge Bracket over and unscrew to replace the M2218-GF16 IO
Bridge Boards.
3. Follow the steps described earlier in reverse order to reinstall the IO Bridge
Bracket.
