162
Socket 0 PcieBr3D00F0 – Port 3A
Settings related to PCI Express Ports
(0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A).
Socket 0 PcieBr4D00F0 – MCP 0
Settings related to PCI Express Ports
(0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A).
Socket 0 PcieBr5D00F0 – MCP 1
Settings related to PCI Express Ports
(0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/5A).

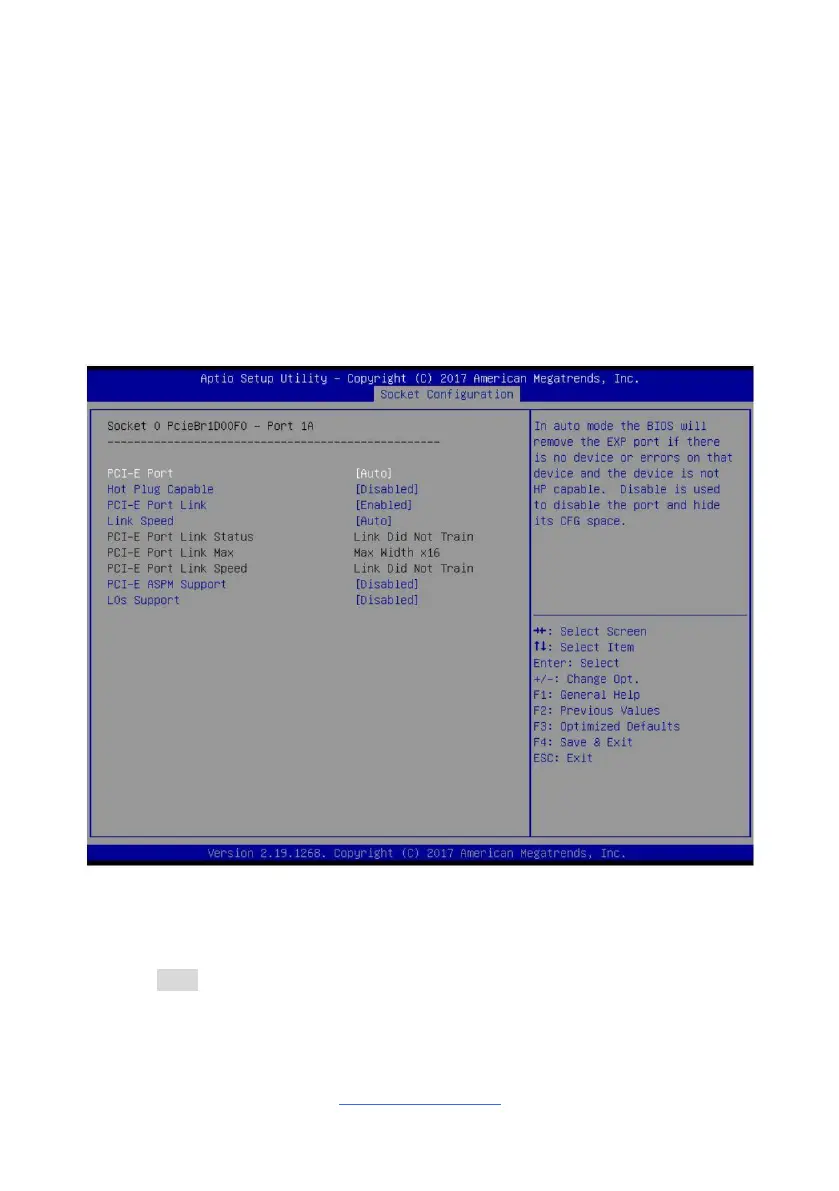

5.5.5.1.1 Socket 0 Port 1A/2A/3A/MCP 0/MCP 1
PCI-E Port
In auto mode the BIOS will remove the EXP port if there is no device or errors on
that device and the device is not HP capable. Disable is used to disable the port and
hide its CFG space.
Auto / Disabled / Enabled
