45
http://www.tyan.com

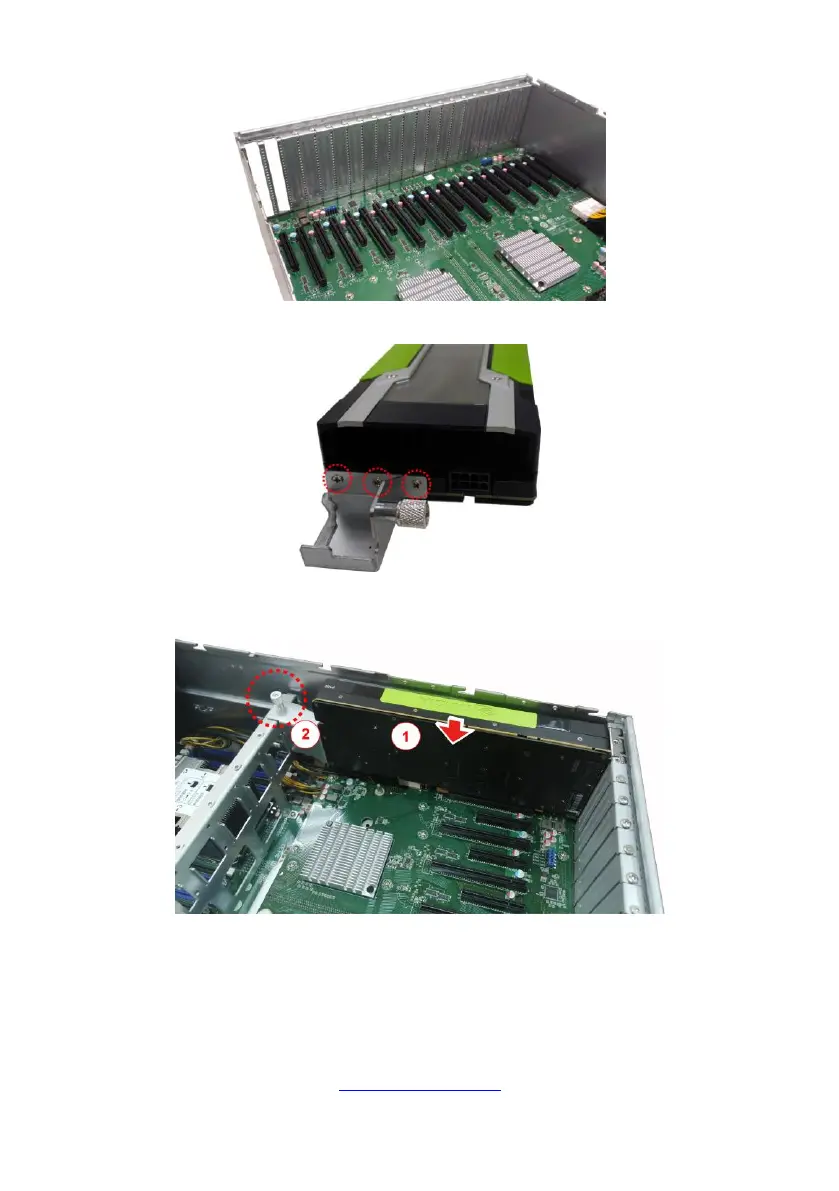

5. Screw the GPU card bracket to the GPU card.
6. Insert the GPU card into the PCIE Gen. 3 slot and screw the GPU card to the
chassis. Connect the GPU PWR cable to the GPU card and motherboard.
