CBF 125 AIR COOLING ENGINE SERVICE MANUAL
RENEGADE SPORT & SCRAMBLER X 125 EFI
62

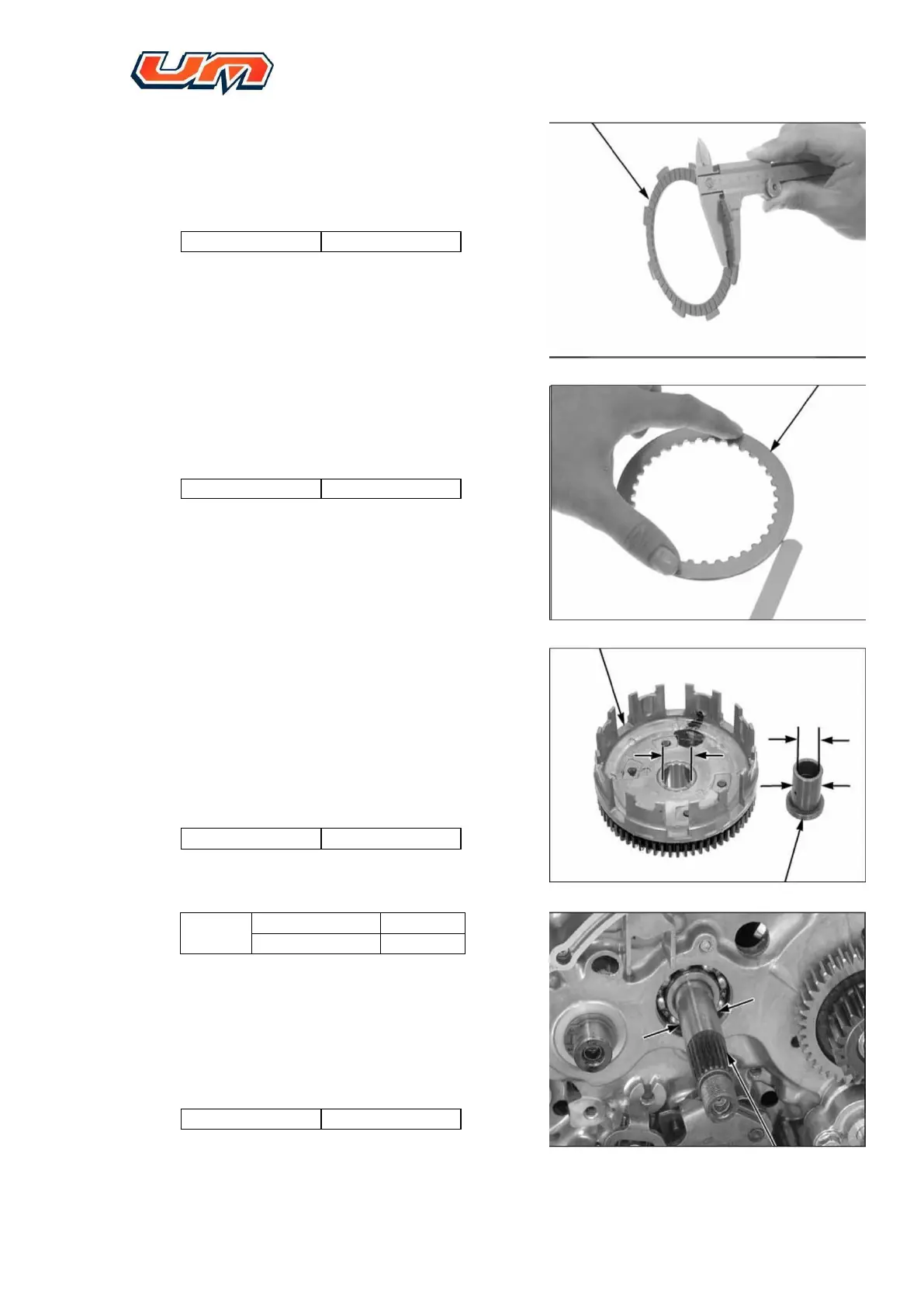

• Check if drive friction plates discolors,
measure thickness of drive friction
plate.
Service limit 2.6mm
• Check driven friction plates flatness.
Service limit 0.20mm
• Check outer case of clutch and shaft
sleeve for abnormal geometry.
Measure inner hole diameter of
driven gear on outer case.
Service limit 23.08mm
Measure inner and outer diameter in shaft sleeve.
Service
limit
Inner diameter
17.04mm
Outer diameter
22.93mm
• Measure main shaft diameter
.
Service limit 16.95mm
