CBF 125 AIR COOLING ENGINE SERVICE MANUAL
RENEGADE SPORT & SCRAMBLER X 125 EFI
79

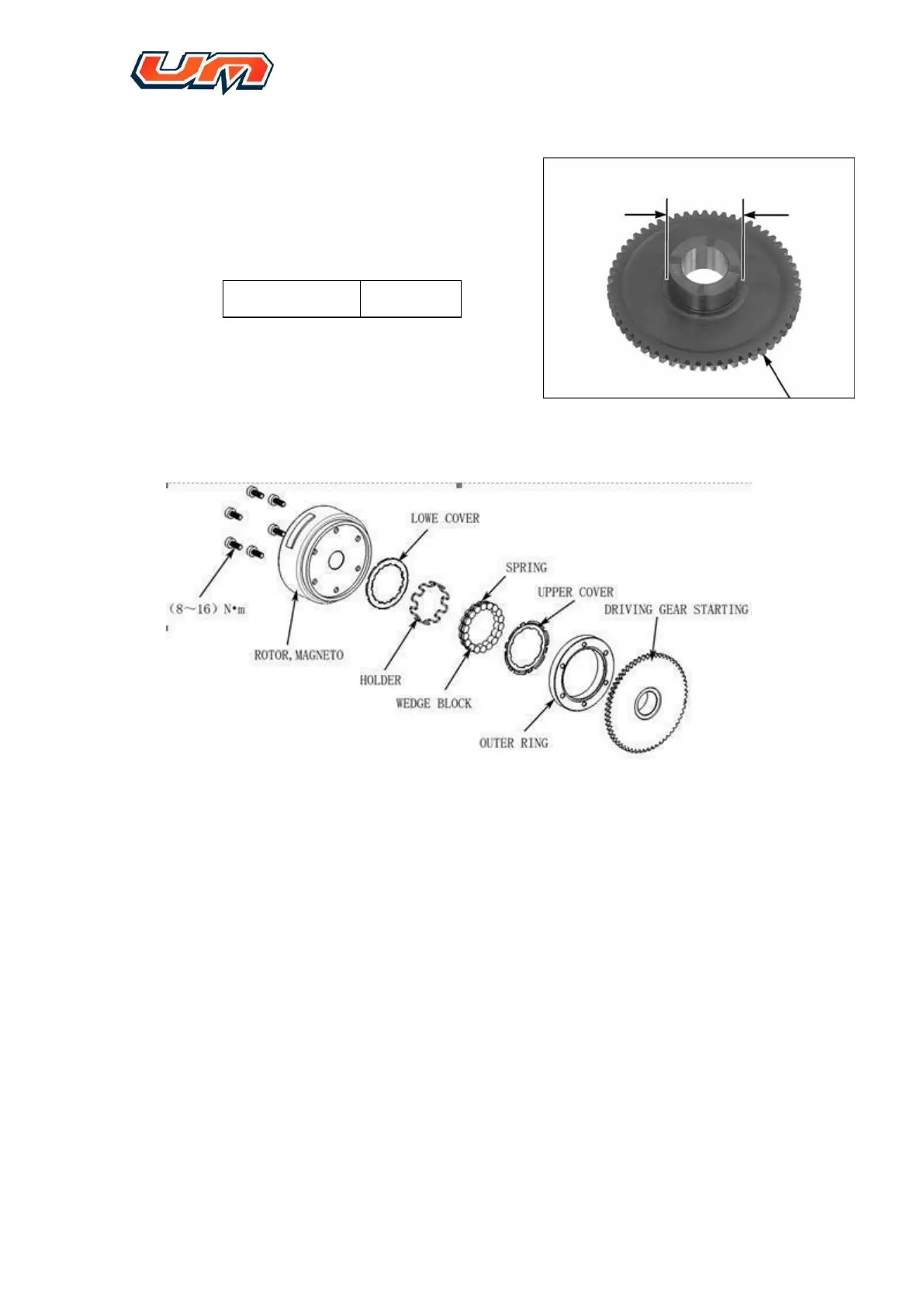

7.3.13.4. Check teeth of large starting gear for
damage
Measure outer diameter of large
starting gear
Service limit 45.60mm
7.3.13.5. Magneto rotor exploded view
