CBF 125 AIR COOLING ENGINE SERVICE MANUAL
RENEGADE SPORT & SCRAMBLER X 125 EFI
71

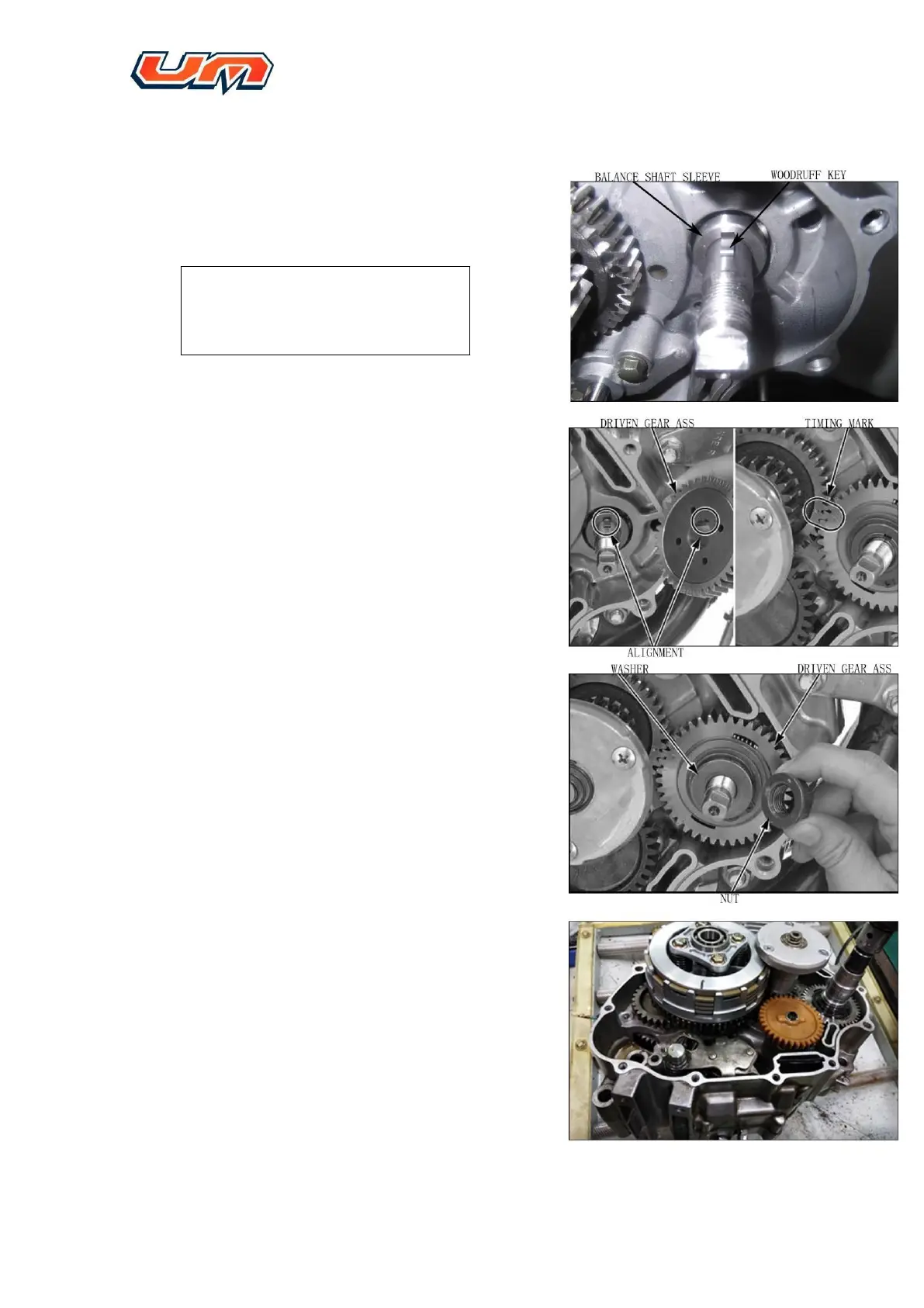

6.6.4. Assembly of driven gear of balancing shaft
6.8.1.1. Assemble shaft sleeve and woodruff
key onto balancing shaft
Note
Do not damage circumference of
balancing shaft and keyway
6.8.1.2. Align keyway of balancing driven
gear with woodruff key on balancing
shaft. Meanwhile, rotate balanced
driven gear to align the keyway with
timing mark on balancing driven
gear.
6.8.1.3. Assembly washer and locknut. Apply
appropriate amount of engine oil
onto flange face of the nut
6.8.1.4. Tightening the nut to specified
torque
Tightening torque 45 N.m.
6.8.1.5. Assemble right cover (refer to 6.5
section),
