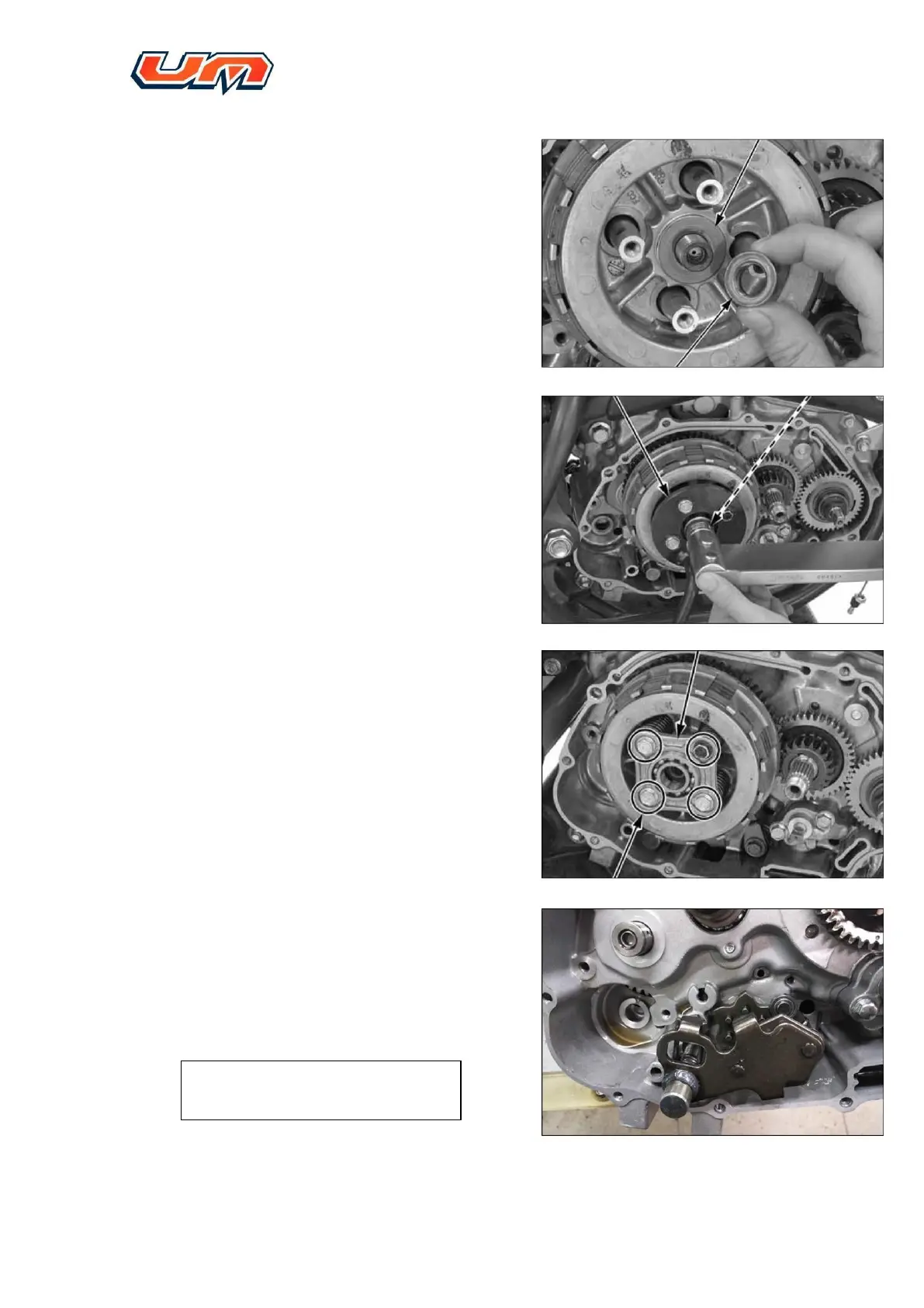

• Assemble gaskets and nuts. Apply
appropriate amount of engine oil
onto end face of nut
• Use tools to fix pressure plate and
tighten locknut of clutch. Tightening
torque shall meet specified
requirement
Tightening torque: 45N.m
• Assemble spring and clutch end
cover, and tighten bolts on the end
cover in "X" sequence
Tightening torque: 10 N.m
6.6 GEARSHIFT ARM
(EXTRACTION AND INSTALLATION)
6.6.1. Take out gearshift arm components
Note: Do not fall washer into
crankcase.
