CBF 125 AIR COOLING ENGINE SERVICE MANUAL
RENEGADE SPORT & SCRAMBLER X 125 EFI
65

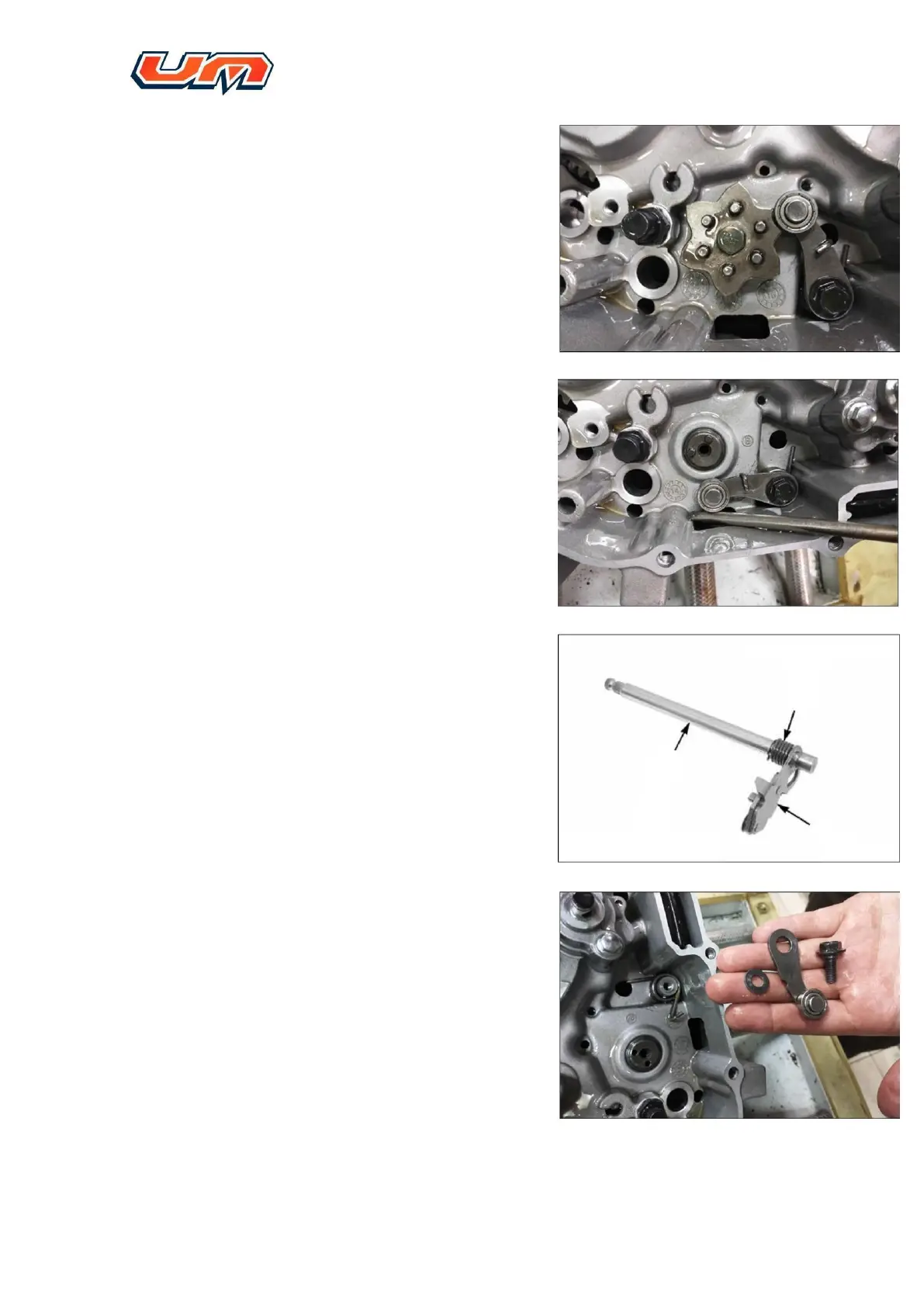

6.6.2. Remove bolt of star-shaped plate, then
dismantle the plate
6.6.3. Dismantle components and parts in order:
6.6.3.1.
Pin
6.6.3.2.
Locating plate
6.6.3.3.
Locating plate bolt
6.6.3.4.
Locating plate spring
6.6.3.5.
Washer
6.6.4. Check of gearshift arm. Check if lever of
arm bends, deforms or wears abnormally;
check spring for damage and break;
6.6.5. Assemble locating plate, spring, bolt and
washer. Hook of spring shall be snapped
into locating plate groove.
Tightening torque: 12N.m
