CBF 125 AIR COOLING ENGINE SERVICE MANUAL
RENEGADE SPORT & SCRAMBLER X 125 EFI
66

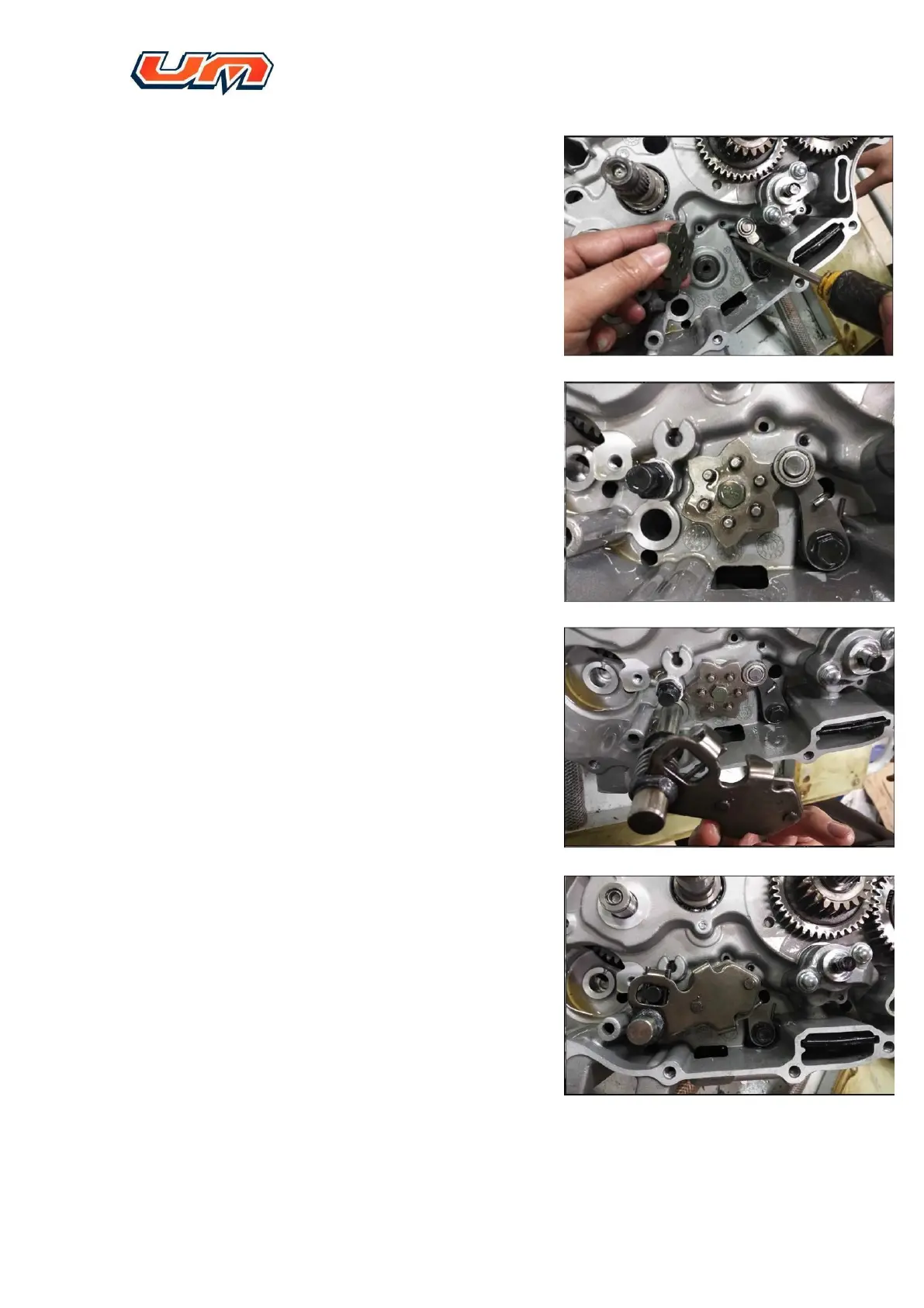

6.6.6. After displace locating plate with flat
screwdriver, assemble pin and star-shaped
plate. Pin holes on the star-shaped plate
shall be aligned with two cylindrical pins.
6.6.7. Tighten bolt on star shaped plate
Tightening torque 12 N.m.
6.6.8. Apply lube oil to gearshift arm shaft
6.6.9. Insert return spring of gearshift arm on
locating bolt. Rotate gearshift arm to
confirm that it is installed to its position.
