CBF 125 AIR COOLING ENGINE SERVICE MANUAL
RENEGADE SPORT & SCRAMBLER X 125 EFI
25

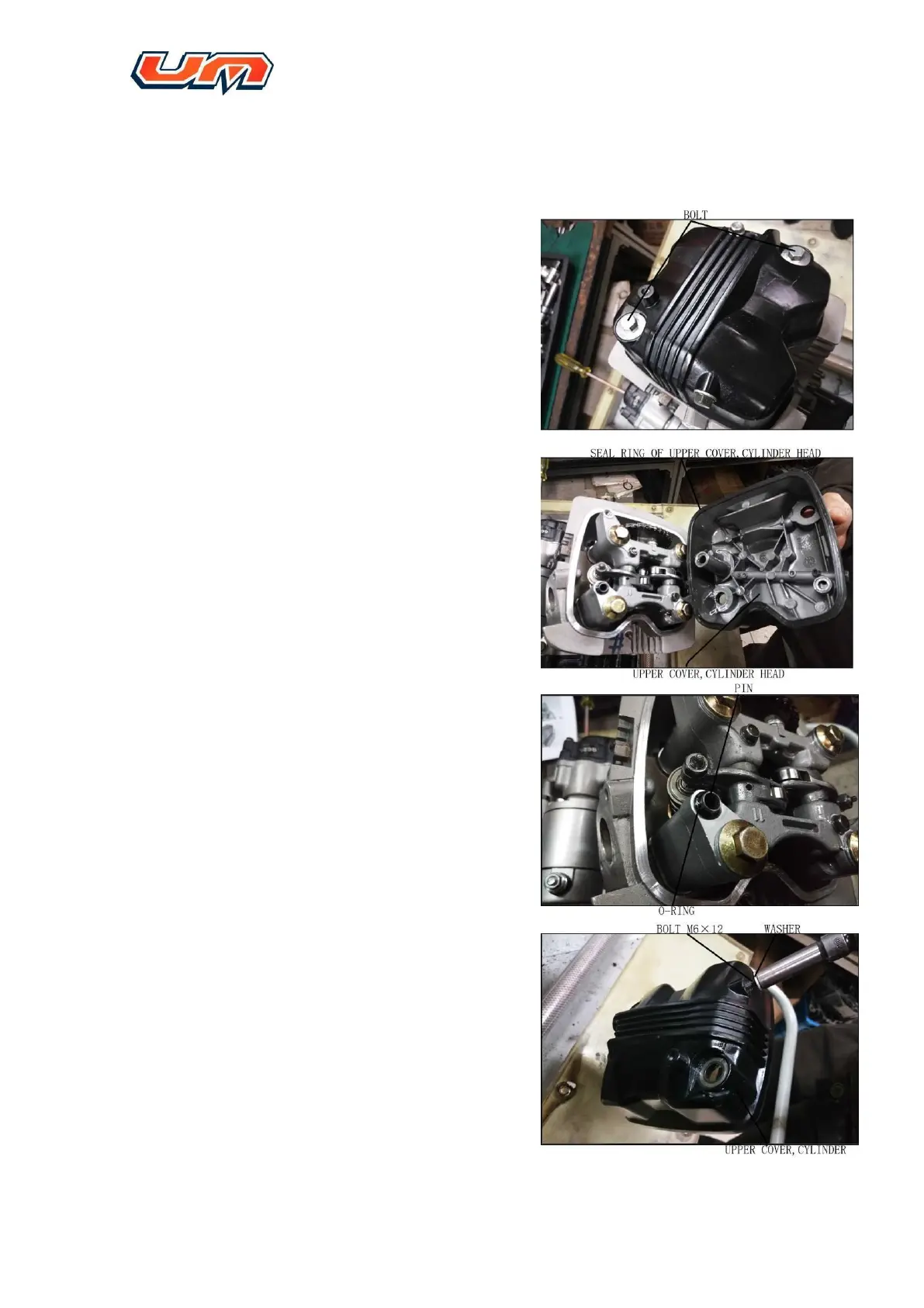

4.2 Upper cover of cylinder head maintenance
4.2.1 Remove two bolts form upper cover of cylinder
head
4.2.2 Take out upper cover and corresponding seal
gasket
4.2.3 Positioning pin and O-ring for removing the oil
path
4.2.4 Remove the washer and screw from upper cover
of the cylinder head.
