1. Press key SHIFT to show the character
shift on the right upper corner of screen
2. Press key AUTO to select starting full-
automatic setting function and character A shall
appear on the upper part of screen indicating
the full automatic setting function has started
1. Under the full automatic setting mode the
automatic trigger mode shall not be altered
2. Entering into the full automatic setting the
following setting shall be compulsory
(1) Under the non main time base status it
shall switch to main time base status
(2) The channel coupling shall switch to AC
coupling which is unchangeable
3. To modify vertical scale coefficient of
oscilloscope horizontal time base change
vertical and horizontal position of oscilloscope
the apparatus shall exit full automatic setting
mode automatically
“” ;
,
-;
-,
“” .
-,
:
-,
;
,.
,,
,
-
.
Notes:

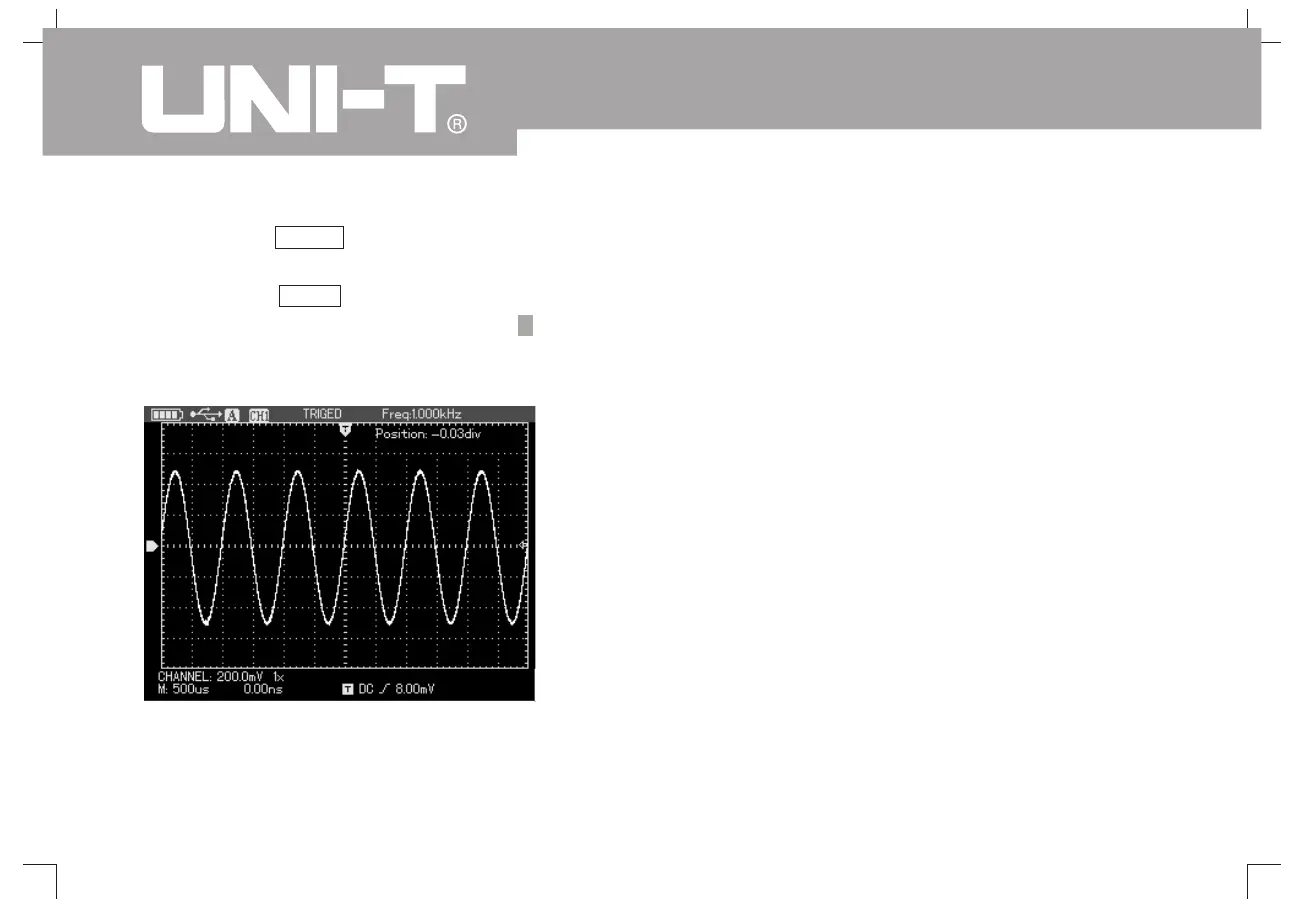

Picture 4-9 Full-Automatic Setting
