UTD1000L User Manual
33
AC voltage measurement
DC current measurement
AC current measurement
Resistance measurement
Diode measurement
Continuity measurement
Capacitance measurement
4. Relative value measurement indications
5. Operation status indication HOLD indicates
the screen has been hold
6. Relative value measures reference value.
7. Measurement value main reading
Press key DMM/DSO the oscilloscope shall
switch to multimeter measurement and screen
displays multimeter interface, then you can
measure with the multimeter.
To measure resistance under the following steps:
1. Press key R the menu shall display the
measurement type resistance
2. Insert blace table pen into COM banana socket
input port and red one into banana socket input
port
3. Connect the red and blace table pen with the
measured resistor the screen shall display
resistance value reading of the measured
resistor.
:
.
.
,
,
:.
.
,
Multimeter Measurement
Measure Resistance Value
Ω

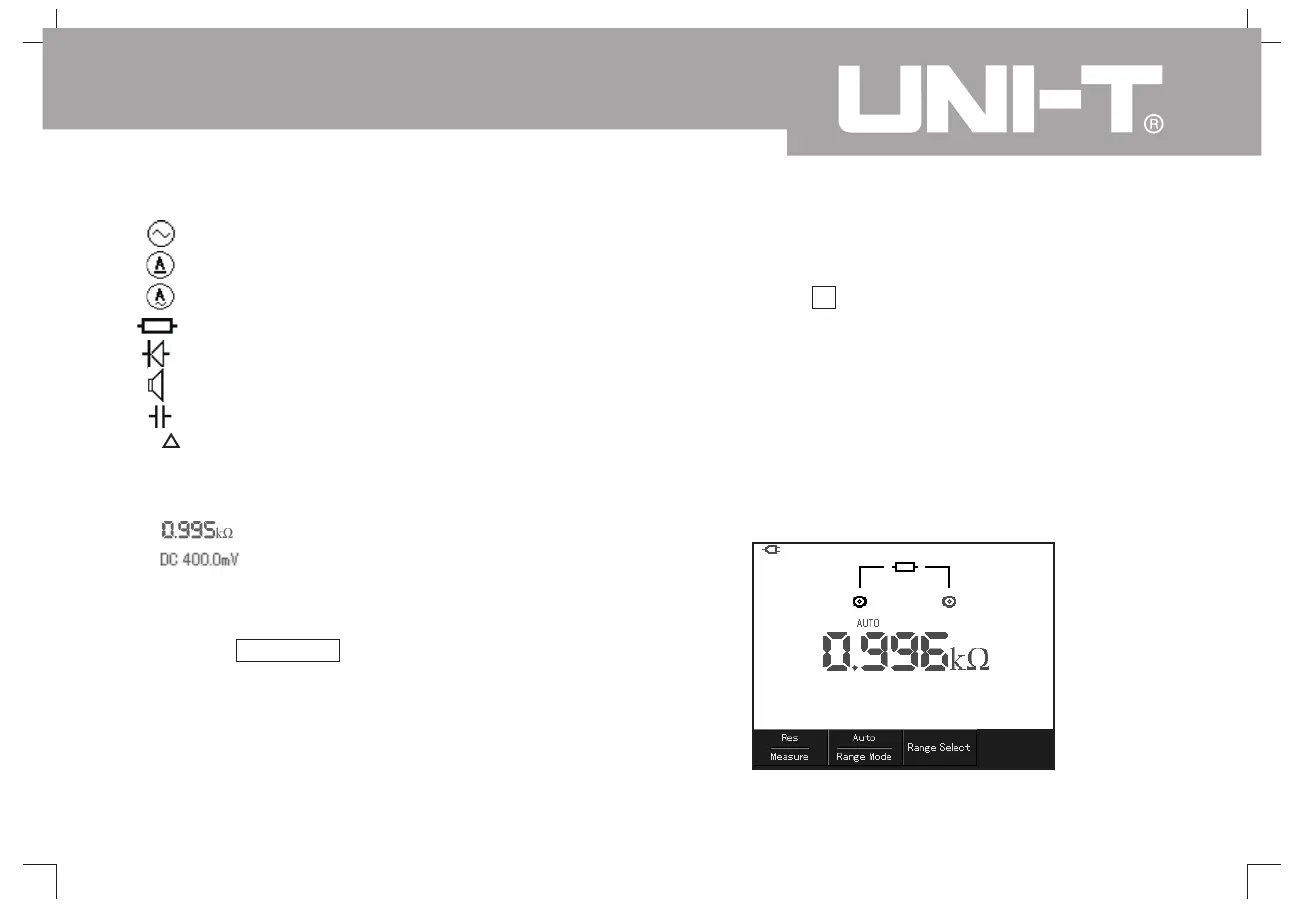

Picture 5-1 Resistance Measurement
