UNI-T UTD1025CL User Manual

UTD1000L User Manual
17
1. Set the attenuation coefficient of probe
multiplying power as 10 firstly set the switch
on probe as 10 and connect probe with input
channel of oscilloscope Connect probe pointer
with output port of the compensation signal
generator.
2. Set automatically
3. Observe the displayed waveform
f the displayed waveform on the screen show
under compensation or over compensation
as the above picture, use the adjust pen with non-
metal handle of the probe auxiliary to adjust
variable capacitance of the probe until correct
compensation were shown on the screen as the
above picture
to guard against the electric shock in
measuring the high voltage with the probe, please
make sure that the insulated conductor of probe
is intact and do not touch the metal part of the
probe when connecting with the high voltage
source
Press key V mV to adjust vertical gear v div
of oscilloscope and to adjust signal to appear
on the screen with the proper size
When the channel symbol is solid, press up/down
keys to adjust ground baseline position to adjust
signal to appear on the screen with the proper
size
,
，
.
;
.
“”“”
“
”
.
.
～(/)
,
；
；
I
Warning:
Vertical System
Munual Set Vertical System, Horizontal
System and Trigger Level

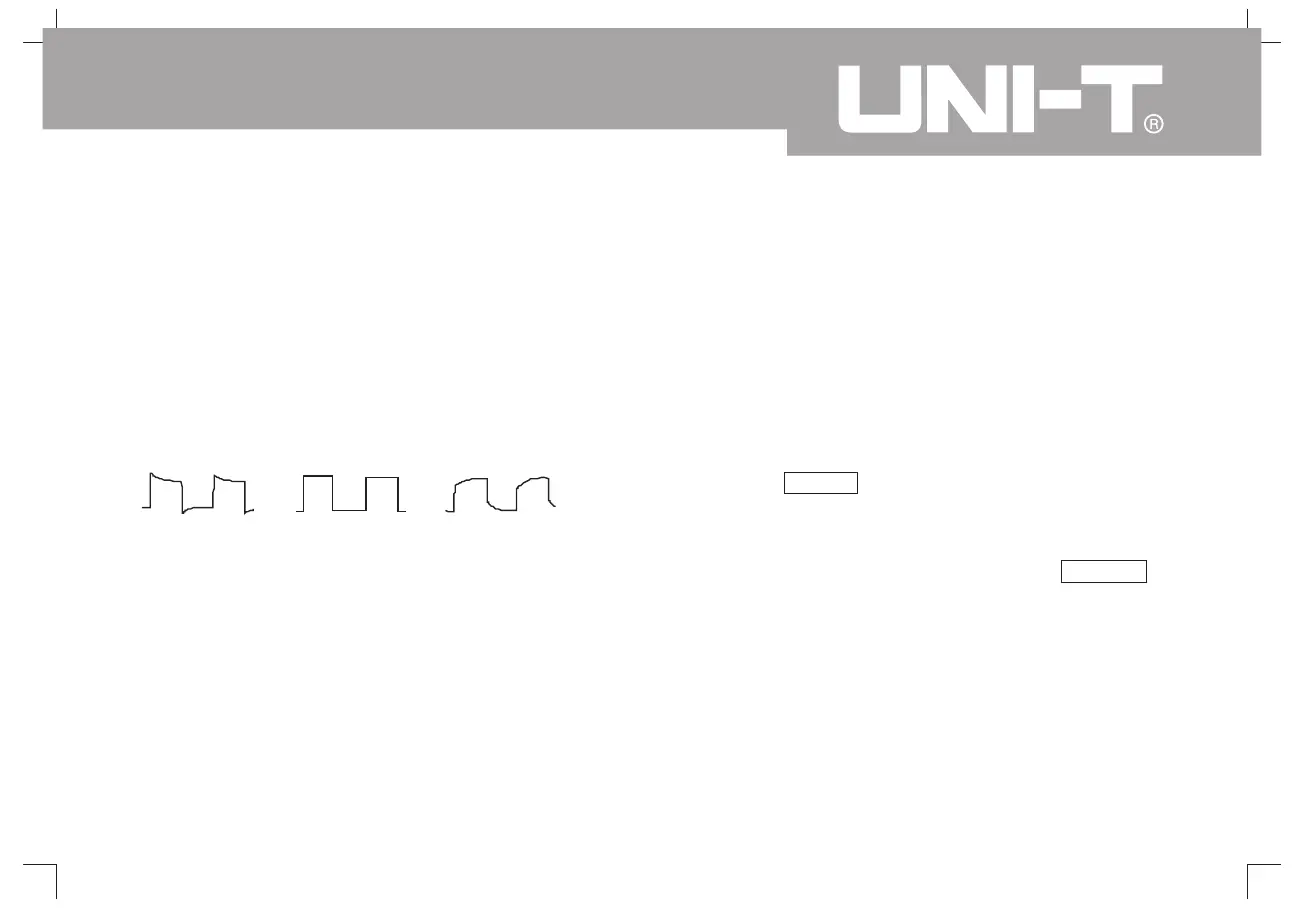

Over compensation
correct compensation
under compensation

UNI-T UTD1025CL Specifications

General

Brand	UNI-T
Model	UTD1025CL
Category	Test Equipment
Language	English
