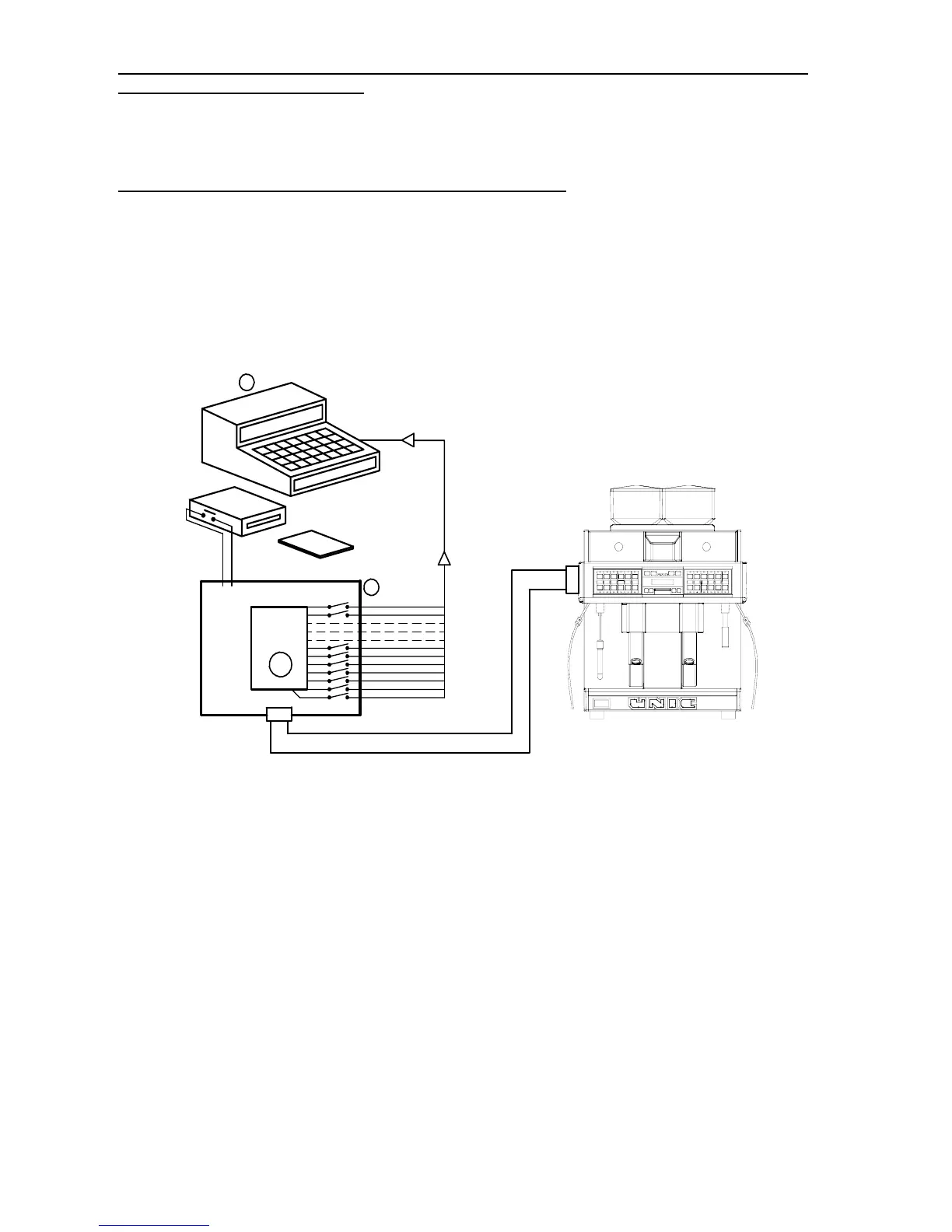

II / RECALL OF FUNCTIONALITIES OF V86 VERSION (SEE INFO TANGO APRIL 2002)
RENEWED ON V108 VERSION.
1
–
P
OSSIBILITY TO C
ONNECT A
TANGO
TO COMPUTER SYSTEM
An interface of 32 relays is ava
ilable and allows to connect a Tango
furnished with a V86 version to a
program computer and that 30 different beverages can be registered.
TRAI
TEMEN
T
IN
FO
R
MA
T
IO
N
IN
TE
R
F
AC
E
I / 0
RS232
I/O
S
32
SORTI
ES
CONTROLE DES D
EBITS
C
BAD
GE
CAI
SSE
E – 3
68
70
Table of Contents
Table of Contents
2
Presentation
5
Basic Versions
5
2 Groups/2 Grinders
6
2 Groups/1 Grinder
7
1 Group/2 Grinders
8
1 Group/1 Grinder
9
Front Panel
10
Other Versions
16
Module Cappuccino
26
Coins Device Model
28
Dimensions / Electrical Ratings
32
Technical Characteristics
33
Electrical Rating
34
Standard
34
Option
34
Installation / Maintenance
39
Preparation of the Site
40
Preparation of the Machine
40
Power Supply
40
Water Supply
40
Hydraulic Connection
41
Duo
41
Solo /Uno
41
Electric Connection
42
Adaption of Toroidal Transformer to Tension of Electrical Network
42
Setting of the Hoppers
44
Hoppers Installation
44
Display Box - Programming
45
Keyboard Keys
46
Particularities of some Keys
47
Steam Air Key
47
Clavir Central/Display Box
48
Tango Menu List
49
Meaning of the Displayed Symbols
50
Meaning of the Messages
50
Explanation of each Function
50
Diagram of Programming Parameters
58
Switching on
59
Powering and Heating
60
Use of the Coffee Groups
60
Cleaning-Maintenance
61
Coffee Units
61
Cappuccino Device
61
Cleaning of the Coffee and Milk Outlets
62
Cleaning of Steam Outlet Tube – Overflow Tray - Body
62
Water Softener
62
Programming
63
Order for Doing Programming of a Tango Machine When Installing
63
Configuration of the Machine in Self Mode
64
To Configurate the Machine in Self Mode Only
65
To Configurate the Machine in Coiners Mode
65
Specificities from V108 Software Versions
66
Presentation of Innovation of Version V108
67
Recall of Functionalities of V86 Version Renewed on V108
69
V128 Jannuary 2004
72
V145 - Jannuary 2005
73
Remind of the STI Function
73
Programming of STI Parameter
73
Braking System ABS
74
Principle
74
Possibility to Change the Factory Setting
74
How to Change the Value of ABS with the Technical Card Only
74
Programming of Tango Equiped with One or Two Coiners
75
Operational Way
75
Note for Coiner Versions
75
For the Cash Computer System, See the Specific Document
75
Transfert of Programmation Data
76
Tango Information Note - May 2005
77
Summary of the Different Codes
77
To Place CPU Version V108 on Tango Equiped with Oloder Version
78
Evolution Kit V108 for Tango English Version
79
Evolution Kit V145 for Tango English Version
80
Evolution Kit V150 for Tango English Version
81
Description of Basic Cycles
82
General View of the Complet Group 2 GR
83
Coffee Feeding
84
Infusion
84
Ejection of Grout
84
Stand by
84
Infusion Cycle
85
Decompression Cycle
86
Cleaning Cycle
87
Coffee Cycle 1 Unit
88
Skeleton Diagram for Cappuccino
92
Electronic Cards
93
Synoptic Tango Parts List
94
Electronic Board Tango
95
Synoptic Tango Duo
96
Synoptic Tango 1 Unit Parts List
97
Tango Solo/Uno Synoptic
98
Electronic Board Tango uno
99
Correspondence of the Leds
100
Relays Card
101
Supply Card
102
Driver Card
102
CPU Card
103
Interface Card of Central Box and Added Keyboards
103
Fuse Mother Board
103
Protection Fuses
107
Wiring - Connectors
112
Terminals
113
Key Board Connecting
114
Connector Listing Unic Tango
116
Connector Listing Unic Tango 1 Unit
122
Skeleton Electric Diagrams
128
Terminal Connecting
129
Duo Wiring Electrical Diagram
130
200/230/240V Electrical Diagram
131
5/12V Electrical Diagram
132
24V Electrical Diagram
133
SOLO Wiring Electrical Diagram
134
TANGO solo 200/230/240V Electrical Diagram
135
TANGO solo 5/12V Electrical Diagram
136
TANGO solo 24V Electrical Diagram
137
5/12V Elec. Diagram 1 Unit TANGO DUO Prog V108 / V115
138
24V Electr. Diagram 1 Unit TANGO DUO Coin Device Prog V108
139
5/12V Electric. Diagram 1 Unit TANGO DUO Coin Device Prog V108
140
24V Electr. Diagram 1 Unit TANGO DUO Coin Device Prog V115
141
5/12V Electr. Diagram 1 Unit TANGO DUO Coin Device Prog V115
142
Wiring Electrical Diagram Tango uno
143
TANGO uno 24V Electrical Diagram
144
Interface Diagram to Connect Informatic System
145
Error Codes
148
Software Version from V192
149
