Top View and Display
20
21 22
23

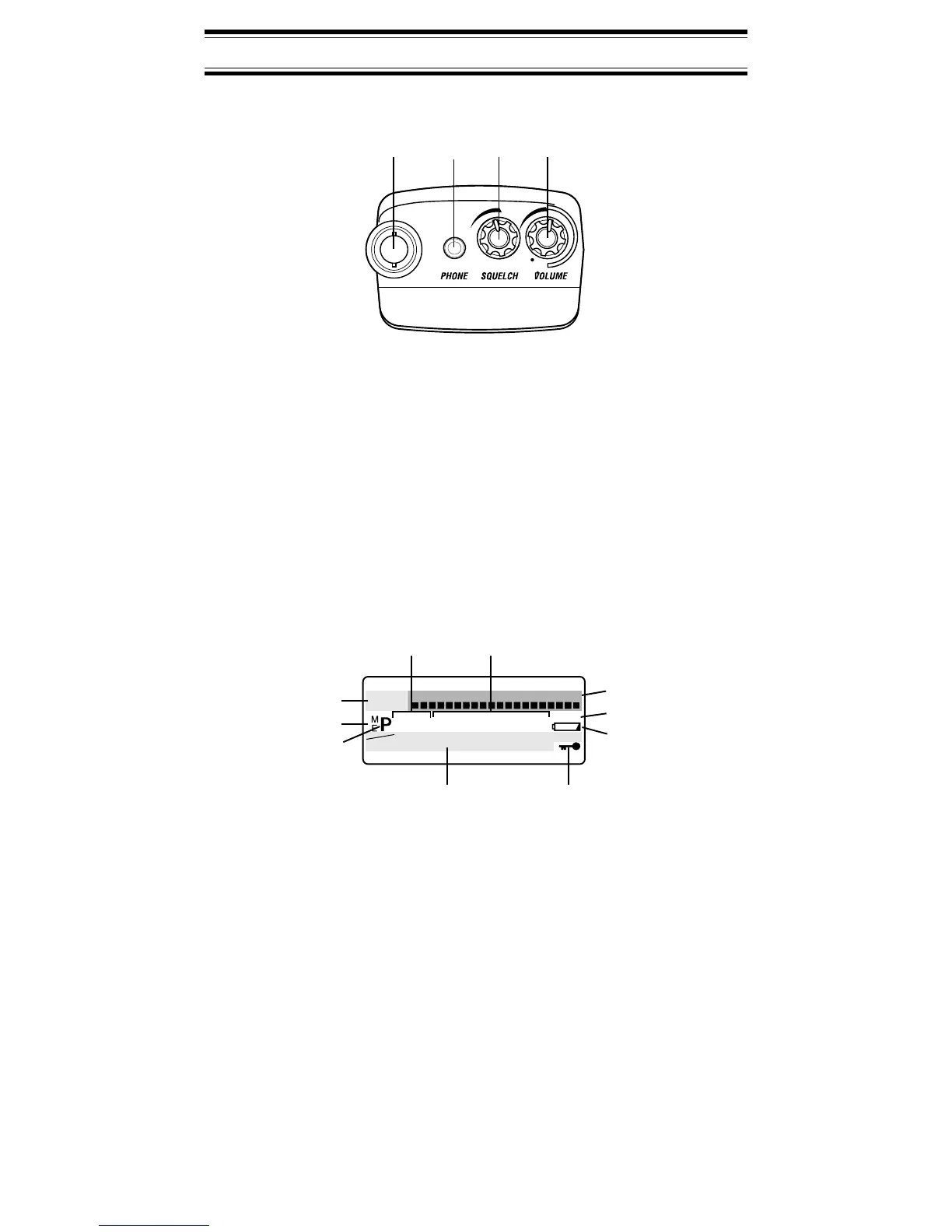

20. Antenna Connector
21. Earphone Jack
22. Squelch Control
23. On/Off Volume Control
BATT
24 25
32
33
31
30
29
888.8888
888
12345678910
BANK
TRUNK
DATAPOLICE RR AIR
AT T
MRN UHF CB
SCAN SEARCH
PRI
HOLD DLY L/O
26
28
27
24. Channel Display
25. Frequency Display
26. Bank/Activity Indicators
27. Attenuate Indicator
28. Battery Low Indicator
29. Keypad Lockout Indicator
30. Mode Indicators
31. Priority Channel Indicator
32. Bank/Trunk Indicators
33. Trunk System Indicators
