Enabling

Services

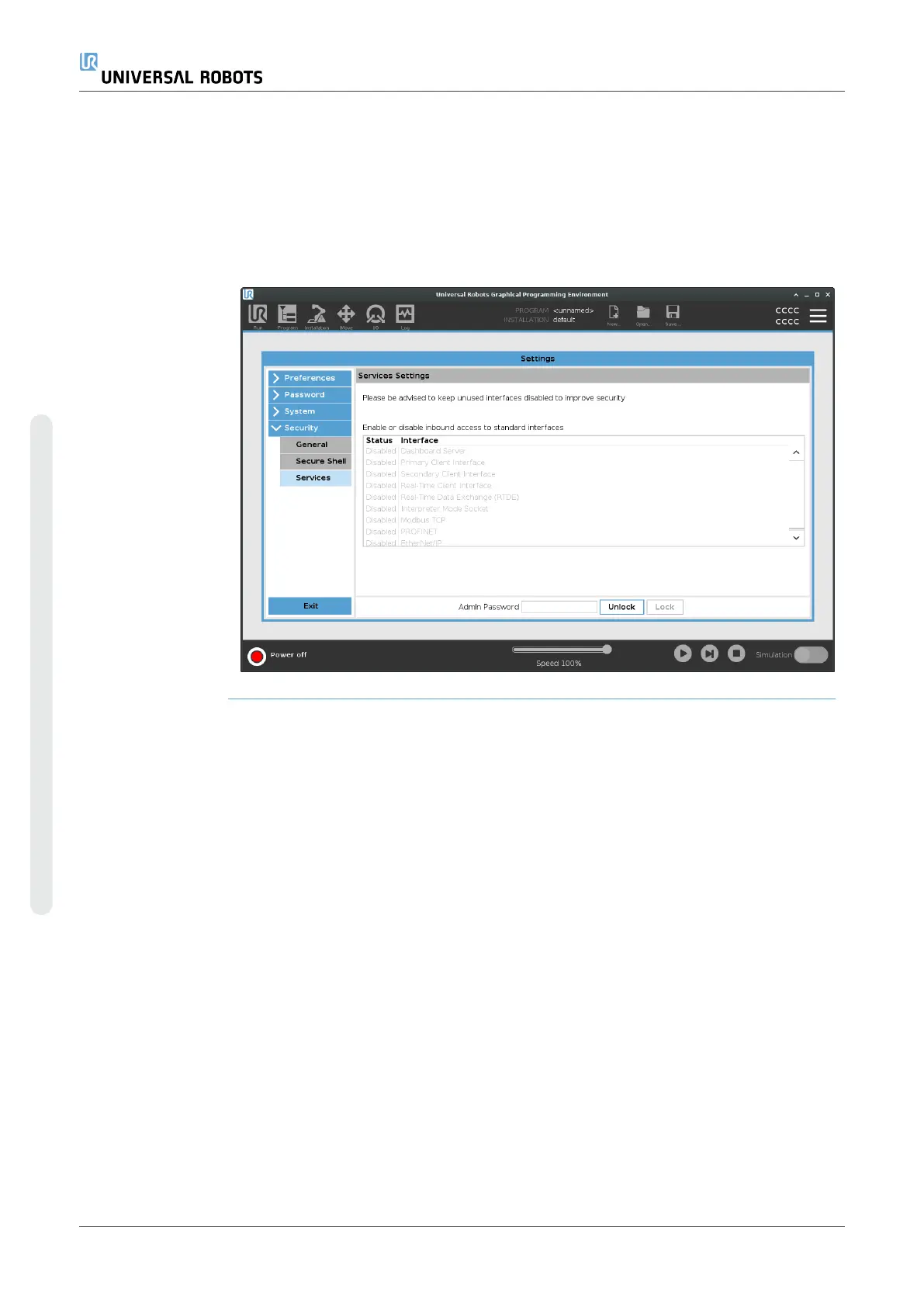

You have to enable the relevant service for the function that you are using.

To enable

Services

1. In the Header, tap the Hamburger menu and select Settings.

2. Under Security, select Services.

3. Enter your Admin password.

4. In the list, select an option and tap Enable, or tap Disable.
