inter faCe (Ba se Pro only)
Uponor Smatrix Base PRO Interface I-147 is a touch
screen interface which communicate with the X-147
controller by a wired communication protocol.
The interface acts as a link between the user and
the controller(s) running in the system, displaying
information and enabling simplified programming of all
relevant system settings.
The Uponor Smatrix Base PRO system can be operated
without the interface, but with reduced functionality (in
example: many of the main characteristics listed below
cannot be used).
NOTE!
Uponor Smatrix Base PRO systems without
an interface can only operate with reduced
functionality.
Uponor Smatrix Base PRO Interface I-147
Main characteristics:
• Touch screen interface.
• Display information and change settings of up to 16
controllers running within one system.
• Adjust temperature setpoints of registered
thermostats within the system.
• Installation setup wizard when installed for the first
time or after a factory reset.
• User friendly menu system available in several
different languages.
• Backlit display.
• Temperature setback programs for each connected
thermostat.
• Limitations of maximum/minimum temperature.
• Schedule temporary lowering of setpoint during
holiday.
• Automatic change between summer- and winter
time.
• Diagnostic function detecting if a room thermostat
is installed in the right room (room check). The
function is only available in systems with four
controllers or less.
• Possibility to automatically open up to two rooms
per controller when other rooms are closed to
maintain a minimum flow (room bypass).
• System diagnostic (alarms etc).
• Visualize trends by e.g. comparing setpoint with
room temperature etc.
• Advanced cooling settings.
• Change language and/or update the software with
microSD card.
• KNX connectivity (requires an external module).
• Control of accessories (outputs etc).
Components of the interface

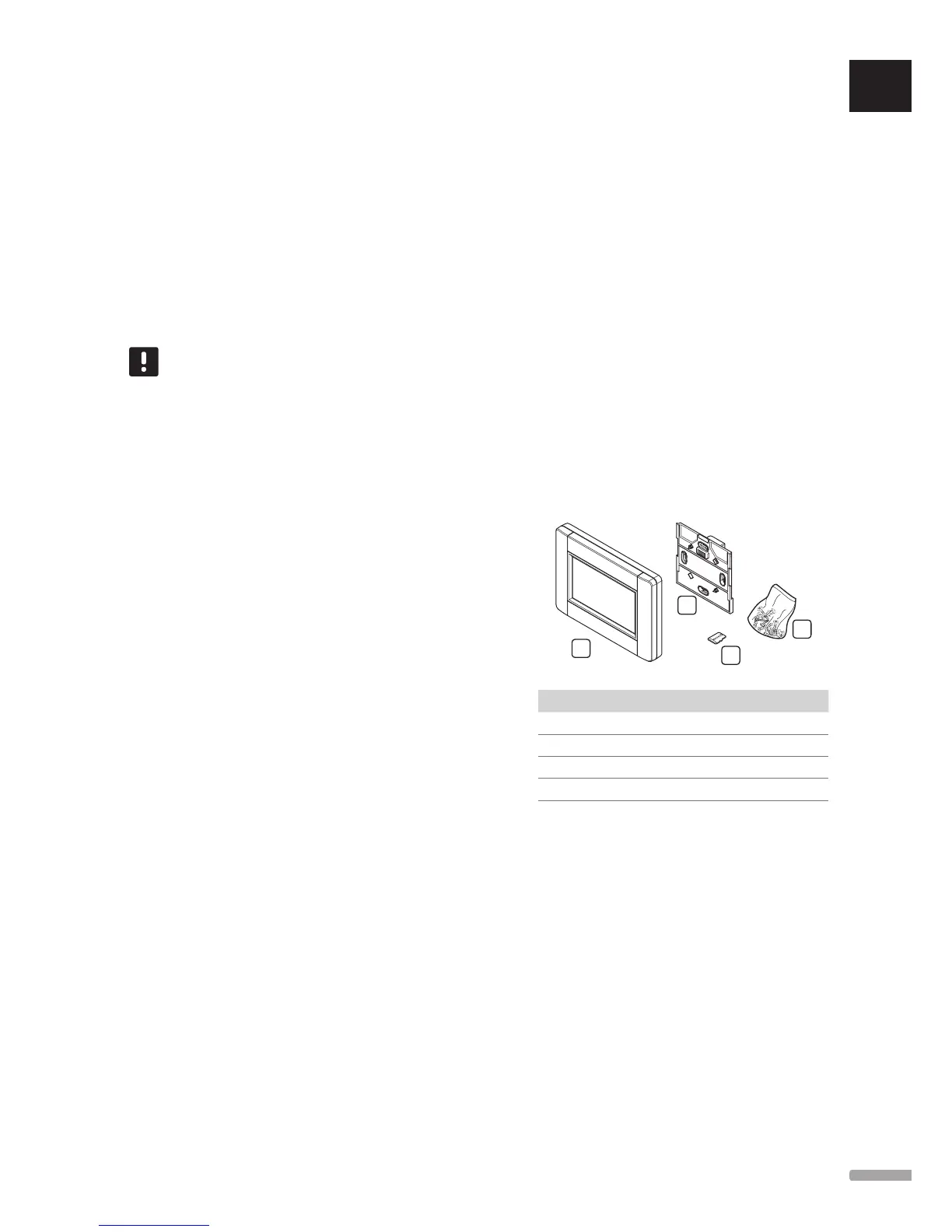

The illustration below shows the interface and its
components.
A
B
C
D
Item Description
A Uponor Smatrix Base PRO Interface I-147
B Wall bracket with power supply
C Mounting material
D MicroSD card
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
11
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
