5 Install Uponor Smatrix Base/Base PRO controller
5.1 Placement of controller
Refer to the installation preparation guidelines (see
section 4.2 Prepare for installation), and use the
following guidelines when positioning the controller:
• Position the controller just above the manifold.
Check the position of the 230 V AC power outlet.
• Check that the cover of the controller can be easily
removed.
• Check that connectors and switches are easily
accessible.

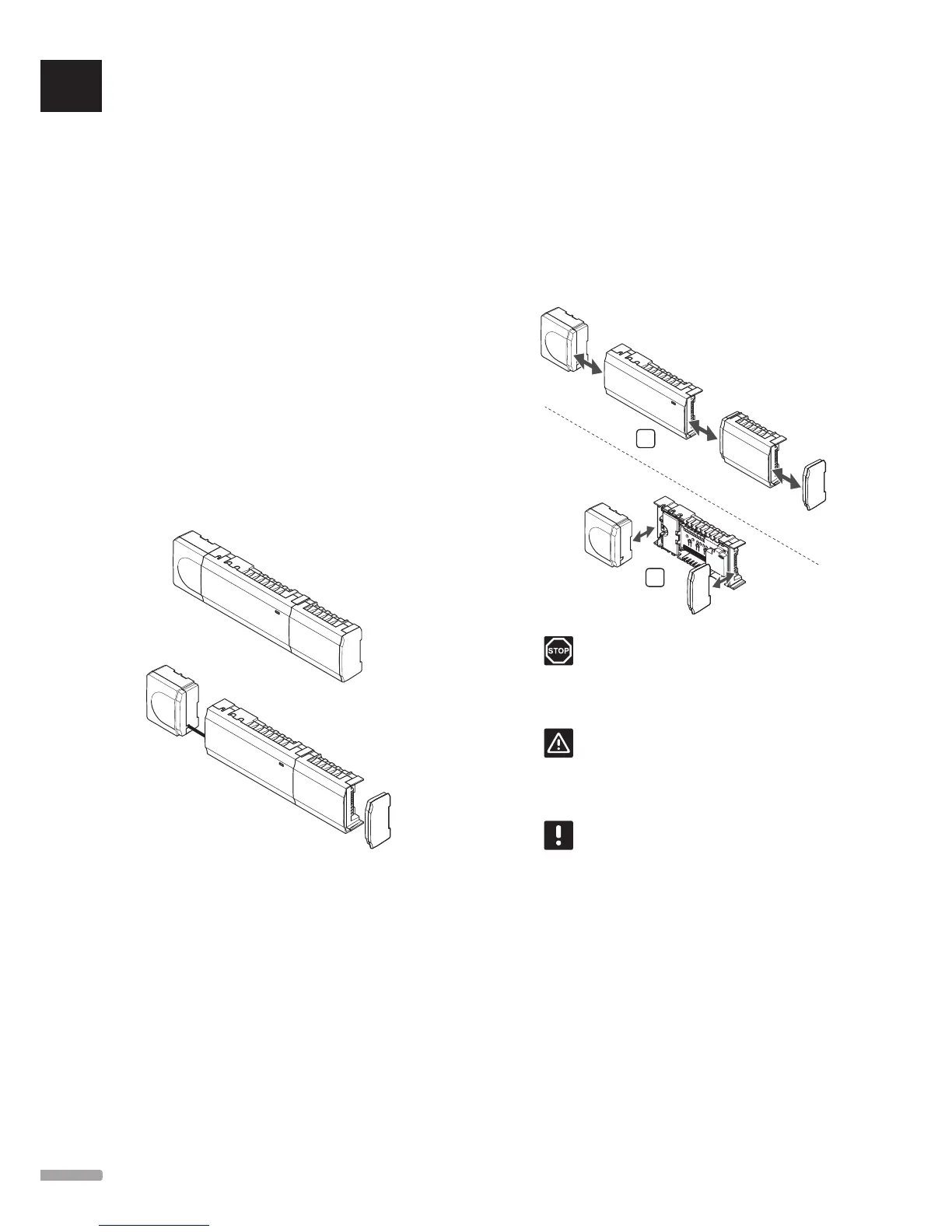

modul ar PlaCem ent
The controller is designed with the option of modular
placement in mind. This means that all major parts are
detachable and can be placed separately (some extra
wiring may be required depending on placement).
Attaching/detaching components
The components can either snap on or off without the
need of removing the covers (A, recommended to do on
a flat surface or on a DIN-rail), or by sliding them into
place when the covers are removed (B).
B
A
Warni ng!
The transformer module is heavy and might
detach if the controller is held upside down
without the cover on.
Caution!
The slave module must be attached by
snapping it into place due to connection pins
sticking out of the module.
NOTE!
Wires between transformer and controller card
needs to be disconnected prior to detaching.
